Square Metal Ceiling Machine

600X600mm PLAIN SHEET AUTO FORMING AND PACKAGE MACHINE

Machine Name: Full-Automatic 600x600mm Metal Ceiling Tiles Production Line
Products Name: Gi Steel or Aluminum made Metal Ceiling Tiles
Products sizes: 600x600mm
Automation: Manual Operation/Full-Automatic Production with PLC
Certificate: CE certificate, ISO 9001 certificate
Machine Power: 380V 50HZ or according with customers‘ request
Speed: 0~3PCS/min for Full-Perforated Tiles
Main Features: Equipped with air cooling system, Famous brand hydraulic system, High quality molds

    metal ceiling tiles 600x600 production line making machine
    metal suspended ceiling system making machine production line
    KINGREAL 600x600mm Full-Automatic Metal Ceiling Tiles Production Line is one of our most featuring products, it can produce both plain and perforated metal ceiling tiles according to customers‘ needs. Main components of the line: Decoiler, Straightener, Perforation Press, Servo Feeder, Notching Press, Re-Straightener, Automatic Cleaning Machine, Automatic Turn-over Machine, Conveyor, Automatic Mechanical Arm, Bend Forming Press and Products Stacking System.



    aluminum perforated ceiling tiles making machine production line
    The front part of the 600x600mm metal ceiling tiles production line is composed by hydraulic decoiler and straightener, both of them are fully automatic type for decoiling and straightening metal coil. The decoiler adopts hydraulic expansion and straightener is high precision type with 21 rollers.


    aluminum panel ceiling making machine production line

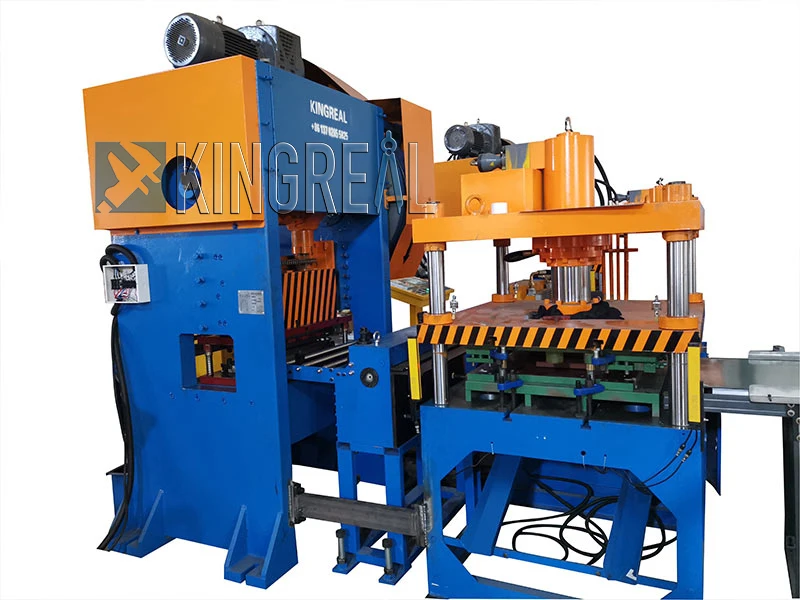

    Perforation press can perforate metal sheet as per design from clients. By changing stings and molds, this press can provide different perforation patterns. Servo Feeder with quality motor to feed metal sheets for next step production. Notching press can cut corners of metal sheets precisely. This combination is compatible with other sizes such as 300x300mm, 300x600mm ceiling tiles as well.


    stainless steel drop ceiling tiles making machine production line

    The final bend forming press is also hydraulic powered, with different molds it can bend and form multiple types of metal ceiling tiles such as Clip-in, Lay-in and Tegular types. Raw tiles are fed by automatic mechanical arm, which can avoid unnecessary work injuries. This press can be operated as fully automatic or manual. Final products will be transformed to stacking system for collecting.


    metal ceiling tiles 600x600 production line making machine

    The Metal Ceiling Tiles Production Line can use both aluminum and Gi steel coils as raw material. It provides high quality products with different holes of diameters. Clients can customize this production line for specific products like 300x300mm, 600x1200mm tiles.



    metal ceiling panel making machine production line
    This production line is featured with our most advanced technology, and it was successfully installed in many countries. In 2020, we continue to send this line to our clients. We are always ready to introduce this product to more friends globally.


    metal ceiling tile production line making machine
    perforated aluminum ceiling panels making machine production line
    600x600 metal ceiling tiles equipment
    galvanized ceiling tiles
