CEILING T BAR MACHINE

Full Automatic Tee Grid Ceilings Roll Forming Machine

Machine Name: Full-Automatic T-Grids Production Lines
Products Name: T-Grids With Different Sizes
Products sizes: As per requirements from clients
Automation: Manual Operation/Full-Automatic Production with PLC
Certificate: CE certificate, ISO 9001 certificate
Machine Power: 380V 50HZ or according with customers‘ request
Speed: 0~30m/min, Hydraulic Follow Shearing System
Main Features: Equipped with air cooling system, Famous brand hydraulic system, light curtain safety protection






    drop ceiling t bar ceiling making machine
    KINGREAL T-bar Grids making machine series are 3 machines that can produce main T-bars, cross T-bars and angle profiles. This combination is featured with fully automatic type, multi station punching and fast production. Main components: Decoilers, Punching press, Servo feeder, Main roll forming machine, Automatic shearing station, Output table and electrical control system.



    t bar suspended ceiling bending forming machine production line
    The T-Grid production lines can produce various sizes of products such as 38x24mm, 32x24mm, 24x24mm, 22x22mm etc. The main roll forming machine is featured with precision forming, shearing station with hydraulic shearing and durable cutting blades. All production lines are PLC controlled and operating system with touch screen.

    tee bar ceiling bending forming machine

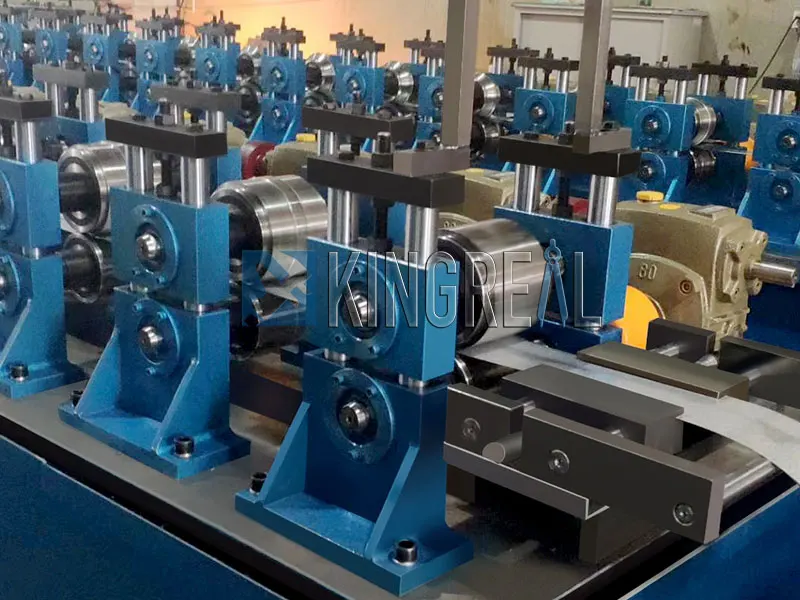

    We euipped lubrication system for main roll forming machine to reduce waste heat during production. Thick panel to protect the forming machine itself, archway structure to build roller stations. Cr12MoV mold steel to make rollers for cold roll forming.

    t bar acoustic ceiling ceiling roll former



    Hydraulic follow shearing station will cut product to length precisely, cutting blade is durable under long-time working condition.Clients can buy multiple machines for different sizes of T-grids production, which not only save time but also provide high efficiency.





    t bar grid system
    A) 32H Model:
    I) Main tee: 32mm x 24mm x 3.0m, or 3.05m, 3.60m, 3.66m
    Ii) Cross tee: 26mm x 24mm x 1.2m, or 1.22m
    Iii) Cross tee: 26mm x 24mm x 0.6m, or 0.61m
    Iv) Wall angle: 20mm x 20mm x 3.05m, or 3.60m
    22mm x 22mm x 3.05m, or 3.60m
    24 mm x 24mm x 3.05m, or 3.60m
    V) Thickness: From 0.23mm, 0.25mm, 0.28mm, to 0.30mm and 0.40mm

    B) 38H Model:
    I) Main tee: 38mm x 24mm x 3.0m, or 3.05m, 3.60m, 3.66m
    Ii) Cross tee: 26mm x 24mm x 1.2m, or 1.22m
    Iii) Cross tee: 26mm x 24mm x 0.6m, or 0.61m
    Iv) Wall angle: 20mm x 20mm x 3.05m, or 3.60m
    22mm x 22mm x 3.05m, or 3.60m
    24 mm x 24mm x 3.05m, or 3.60m
    V) Thickness: From 0.23mm, 0.25mm, 0.28mm, to 0.30mm and 0.40mm



    C) 32H Model(9/16):
    I) Main tee: 32mm x 14.5mm x 3.0m, or 3.05m, 3.60m, 3.66m
    Ii) Cross tee: 32mm x 14.5mm x 1.2m, or 1.22m
    Iii) Cross tee: 32mm x 14.5mm x 0.6m, or 0.61m
    Iv) Wall angle: 20mm x 14mm x 3.05m, or 3.60m
    V) Thickness: From 0.23mm, 0.25mm, 0.28mm, to 0.30mm and 0.40mm

    D) 38H
    Model(9/16):
    I) Main tee: 38mm x 14.5mm x 3.0m, or 3.05m, 3.60m, 3.66m
    Ii) Cross tee: 38mm x 14.5mm x 1.2m, or 1.22m
    Iii) Cross tee: 38mm x
    14.5mm x 0.6m, or 0.61m
    Iv) Wall angle: 20mm x 14mm x 3.05m, or 3.60m
    V) Thickness: From 0.23mm, 0.25mm, 0.28mm, to 0.30mm and 0.40mm Besides ceiling
    suspension systems,we also produce steel strut channels.
