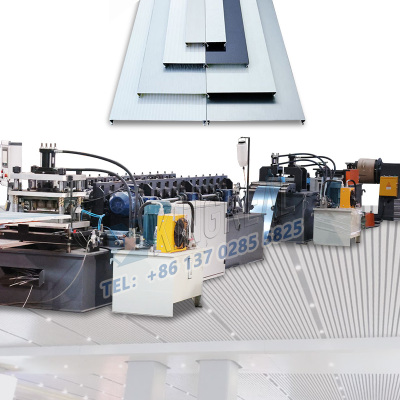

Linear Strip Ceiling Auto Production Line

KINGREAL CEILING MACHINERY automatic Linear Strip Ceiling Production Line can produce multiple metal strip ceilings, including C-shape strip ceilings, G-shape linear ceilings, H-shape strip false ceilings etc.. Send us the relevant linear metal ceiling production requirements and machine parameters, and our technical consultants will provide you with the latest linear strip ceiling making machine production solutions and quotations.

Details

Video About Linear Strip Ceiling Machine



Description of Ceiling Strip Machine


The linear strip ceiling width can be adjusted by NC system, it can be changed automatically only for the operator to input the product width, height, length. And the linear strip ceiling making machine uses the AC motor (speed adjustable) to do the continuously automatic cold roll forming process.


After decoiler and straightening of the raw metal coil, KINGREAL CEILING MACHINERY linear strip ceiling making machine can do the cold roll forming of the metal strip ceiling continuously. The advantage of the KINGREAL CEILING MACHINERY metal ceiling strip production line is can do different sizes of metal strip ceilings on the same machine.

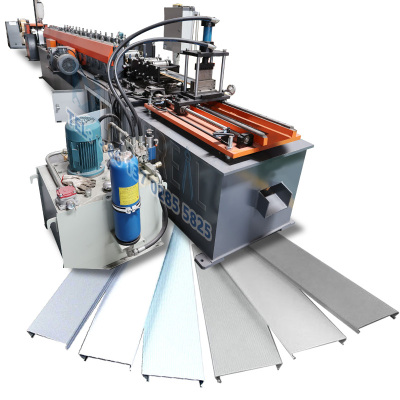

ceiling strip machine


Technical Specification


(1)Linear Strip Ceiling Production Line Parameters


Materials Materials

Aluminum or Galvanized Steel

Standard SizeWidth: 25-150mm, Height:20-250 mm
Aluminum Thickness0.6mm- 1.2mm
Length< 5000mm
Other Tipswooded grain and any RAL color, KINGREAL CEILING MACHINERY can accept your OEM designs


(2)Linear Strip Ceiling Product Details


Materials

High quality aluminum alloy or galvanized steel

Surface finishStandard powder coating or Outdoor polyester powder coating
Surface styleNon-perforated
SizeWidth 40mm ;Height 150mm
Edge typeStraight
Total panel thicknessRanging from 0.50 to 1.2mm
Color patternsVarious color patterns are available as per company color pattern book
CertificatesISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS. Intertek Tests
OthersCustomized order available
PackingStandard carton box
AccessoriesSpecial carrier available

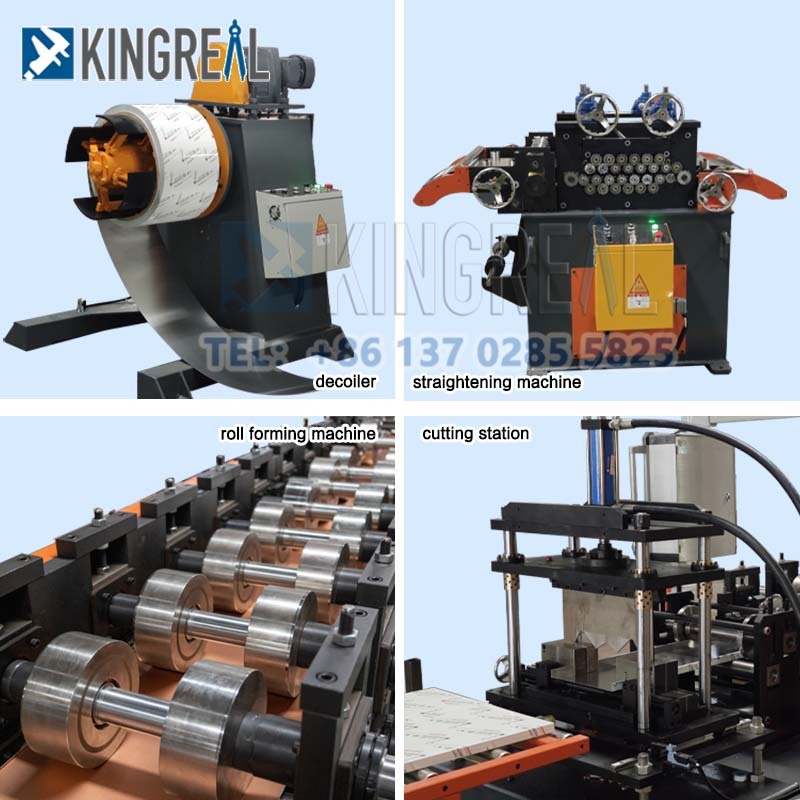

Main Components of Ceiling Strip Production Line


- Decoiler

- Leveler

- Main roll forming machine

- Shearing and bending system

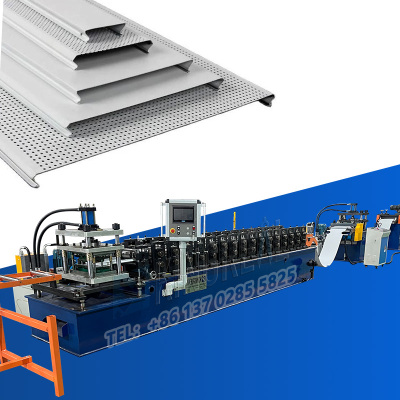

ceiling strip production line


Features of Metal Strip Ceiling Making Machine


Precision Straightener Machine


The Metal Strip Ceiling Making Machine adopts 21 rollers leveler. Precision Straightener is very important for the quality control of the metal linear strip ceiling, due to different widths of the strip ceiling from 100-600mm. After precision straightening process of the metal coil, the roll forming and shearing will be more accurate.

metal ceiling production line
ceiling strip machine





Long Service Life Machine


The linear metal ceiling production line's body and rollers are made of high-hardness steel, which is strong and wear-resistant and can withstand continuous forming operations. It is featured with high precision, is easy to operate and long lasting.

Hydraulic Shearing And Bending System


KINGREAL CEILING MACHINERY adopts a hydraulic system to drive the shearing and bending system of metal strip ceiling roll forming machine. After precision cold roll forming, the shearing and bending system will shear the linear strip ceiling to the requested length and do the bending forming accordingly. A hydraulic driven system makes the shearing and bending process more precise and faster

ceiling strip production line


Working Process


Uncoil → Material Straightening → Punching Station → Continuously Cold Roll Forming → Auto Shearing → Products Output


metal ceiling production line

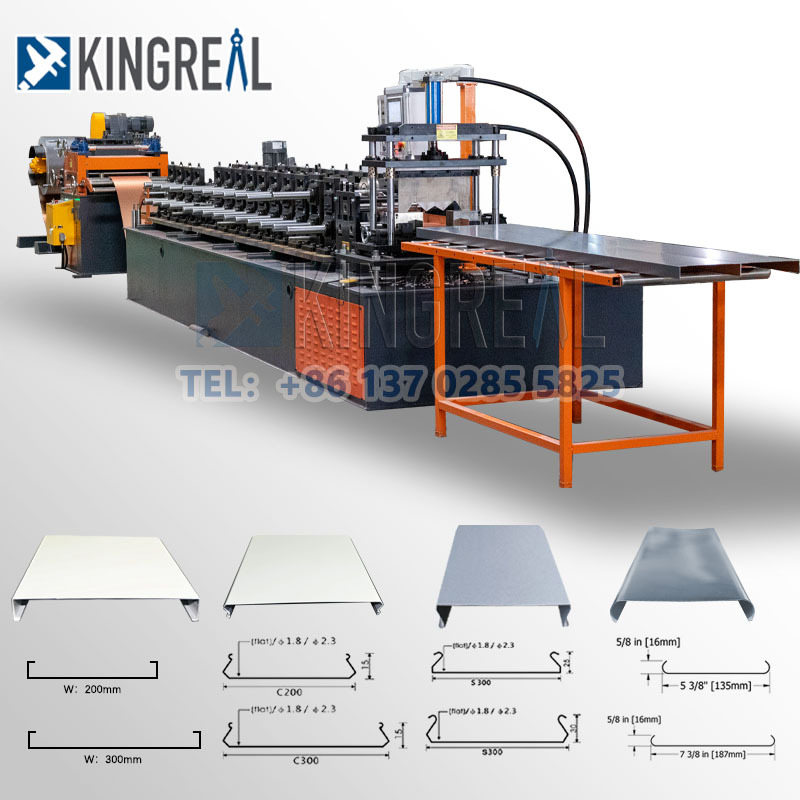

What Kinds of  Linear Strip Ceiling Machines Can Provide?

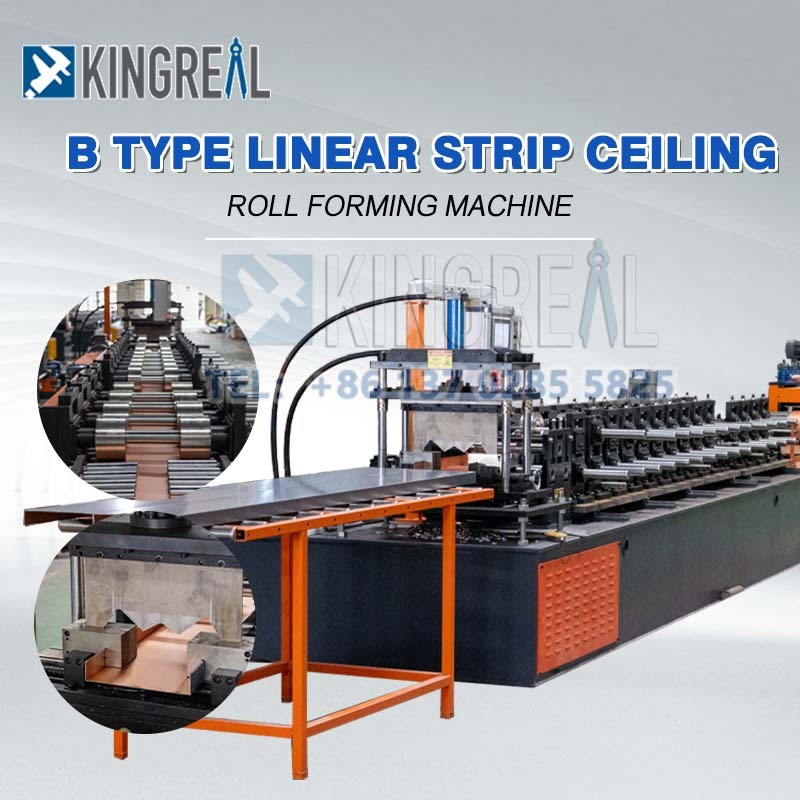

- C-shape linear strip ceiling roll forming machine
- G-shape linear metal ceiling roll forming machine
- H-shape strip ceiling roll forming machine
- S-shape linear strip ceiling roll forming machine
- V-shape linear metal ceiling roll forming machine

If you have other linear strip ceiling production requirements, please contact us, tell us your production needs and KINGREAL CEILING MACHINERY will provide you with the latest machine design solutions.


ceiling strip machine



Application of Metal Strip Ceiling


Industrial and civil buildings, special buildings, interior partitions, suspended ceiling, wall, airport, bus station, museum, opera house, exhibition hall, shopping centre, conference hall and etc.


ceiling strip production line

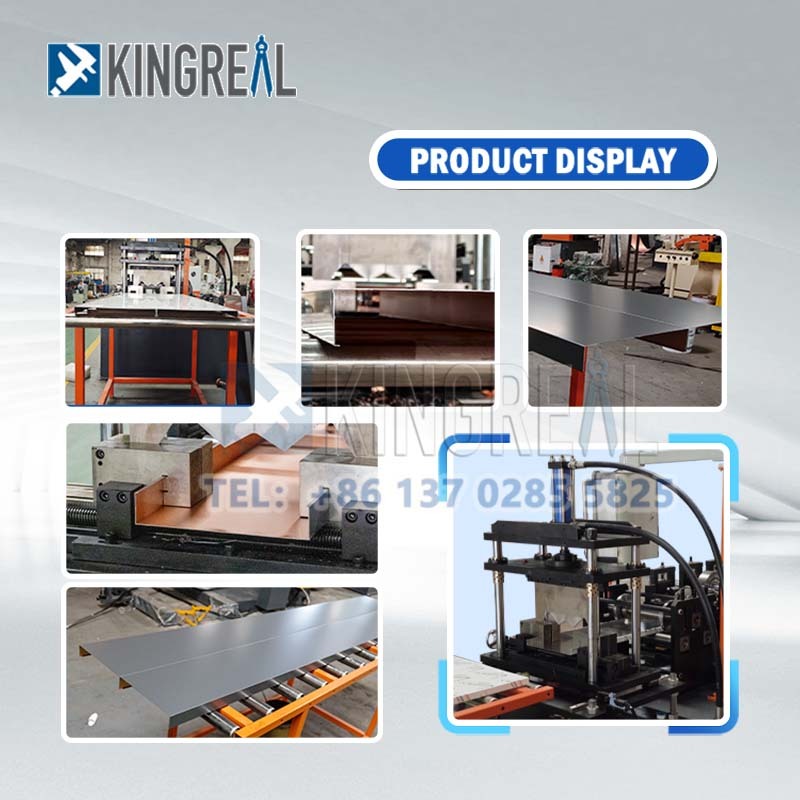

KINGREAL CEILING MACHINERY Successful Projects


metal ceiling production line


After-Sales Services


Services are always highly considered by us, in addition to establishing a complete remote service system, localized after-sales service is also what KINGREAL CEILING MACHINERY has been insisting on doing. The global localization service point is under construction.


ceiling strip machine
