U10 U15 Open Cell Ceiling Machine

KINGREAL CEILING MACHINERY U10 U15 Open Cell Ceiling Machine received the favor of many customers who have demand for a high degree of efficient ceiling grid tile production. Now successfully exported to Italy, UAE, Russia, Argentina and other countries.

Details

Video About Open Cell Ceiling Machine



KINGREAL CEILING MACHINERY Grilyato Production Line Installation Cases


open cell ceiling machine


The grilyato ceiling machine is one of KINGREAL CEILING MACHINERY's featured machines. KINGREAL CEILING MACHINERY has established friendly cooperative relations with customers in many countries. KINGREAL CEILING MACHINERY's grilyato ceiling production line has been successfully exported to India, Vietnam, Russia, Saudi Arabia and other countries. KINGREAL CEILING MACHINERY's engineers are not only responsible for the offline installation of the grilyato ceiling production line, but also provide professional operation training to ensure that customers can master the use of the grilyato ceiling machine. At the same time, KINGREAL CEILING MACHINERY has accumulated rich experience in the design, manufacture, installation and commissioning of grilyato ceiling machines, and can provide customers with efficient services and solutions.


Description of U10 U15 Ceiling Grilyato Machine

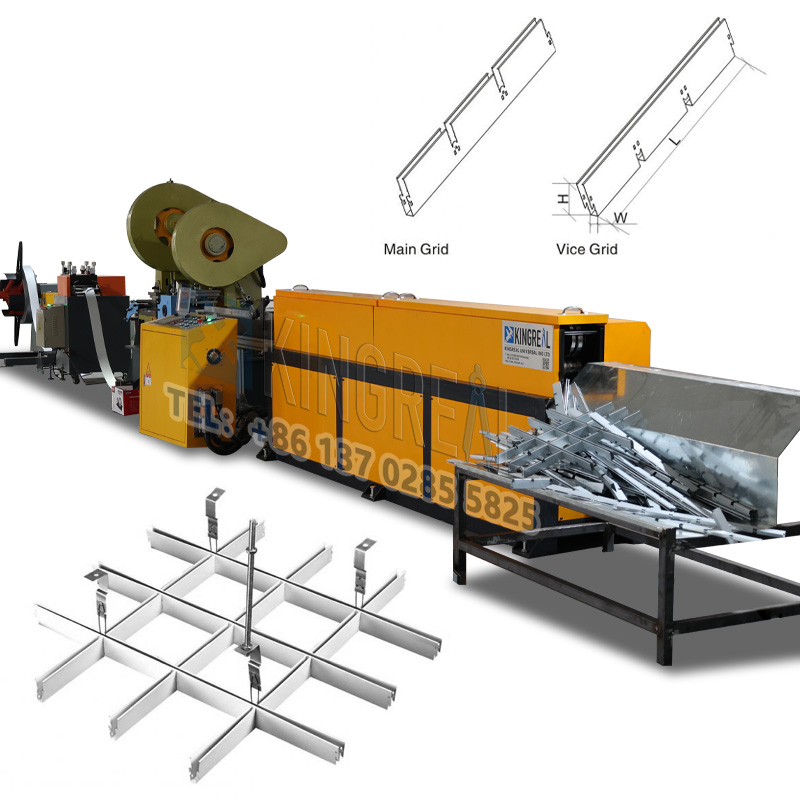

KINGREAL CEILING MACHINERY suspension open cell ceiling panel machine is used to manufacture metal grille ceiling, it can use metal or aluminum alloy sheet, through unwinding, leveling, punching, rolling, cutting and other processing processes to form a grille shaped ceiling sheet. The forming machine is usually composed of a frame, a feeding system, a molding system, a cutting system, and a control system. It can realize automatic production, improve production efficiency and product quality.


grilyato production line


Features of U10 U15 Open Cell Ceiling Grilyato Making Machine


1. KINGREAL CEILING MACHINERY Featuring Production Line

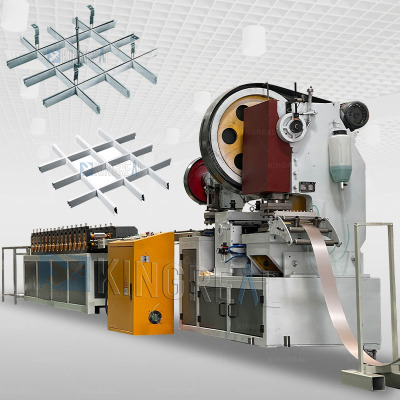

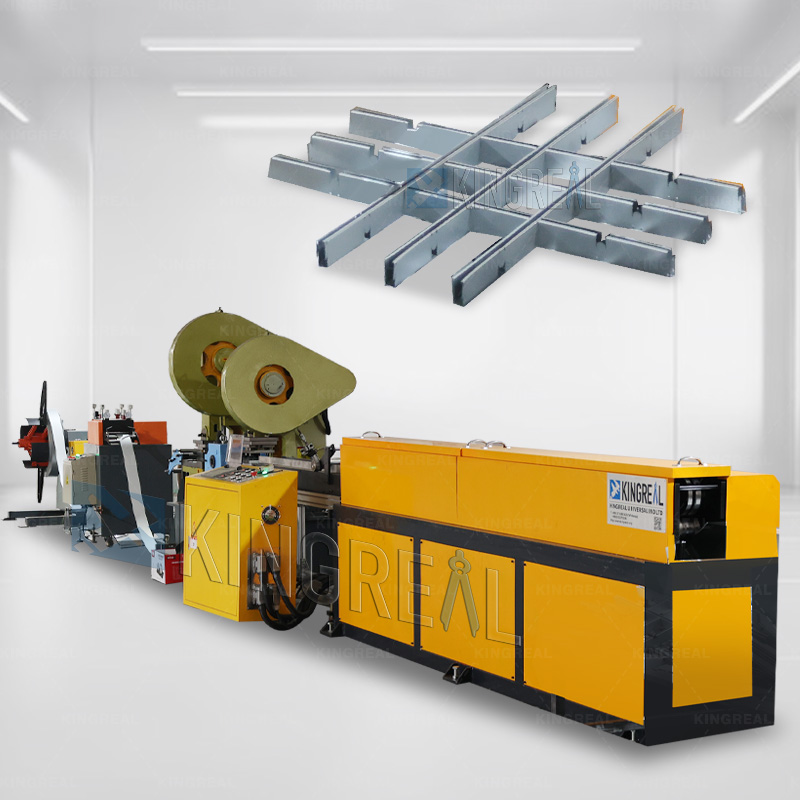

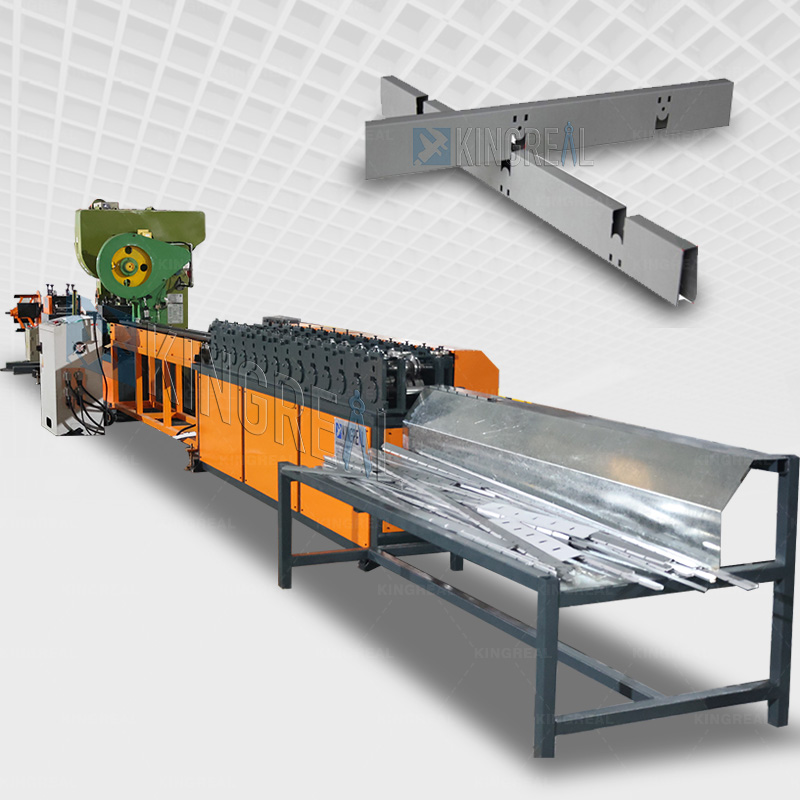

      KINGREAL CEILING MACHINERY Open Cell Ceiling Making Machine is one of KINGREAL CEILING MACHINERY best machines featured with most advanced technology. It contains a full solution from material unwinding to perforation and roll forming.
     Main components of this production line: Combined material decoiler & straightener, High-speed punching press, Servo feeder, Main roll forming machine, Product output table and Electrical control.
ceiling grilyato making machine
open cell ceiling machine

2. Flexible Production Line

  This production line is featured with standardization and customization. It can produce standard sizes of open cell ceilings, also can be customized to produce other sizes as per requirement from clients

 It adopts Gi steel or aluminum coils as raw material, with a fast decoiling and straightening procedure. The whole open cell ceiling production line is a full-automatic type.

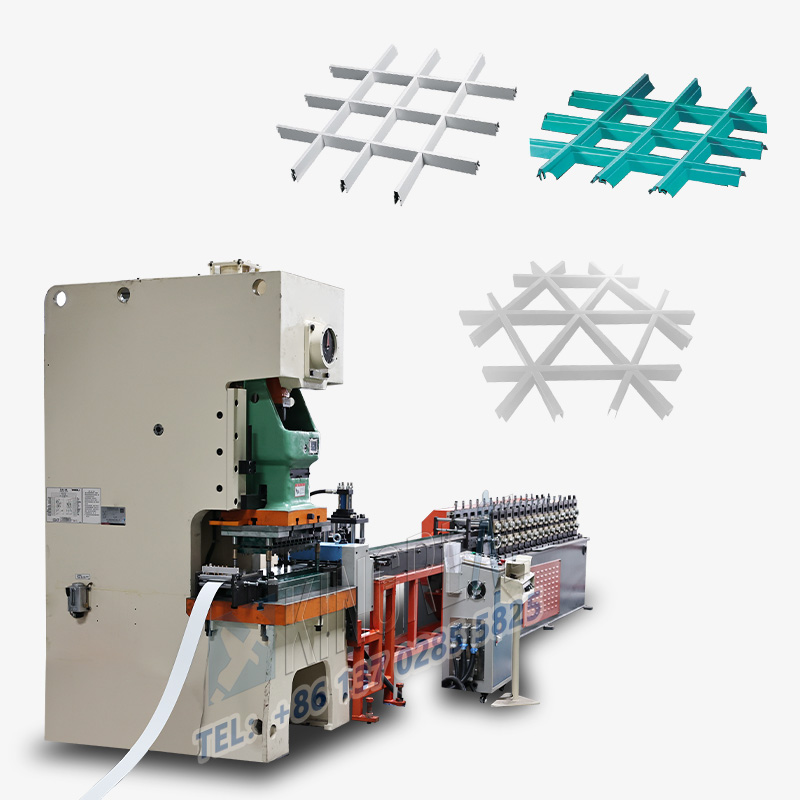

3. High Quality Punching Press

With KINGREAL CEILING MACHINERY's high-speed punching press, perforation will be done accurately and precisely. This press features the open cell ceilings with quality perforation patterns and can be customized to punch other patterns as well. After perforation, material sheet will be conveyed by a servo motor to main roll forming machine for final forming.
KINGREAL CEILING MACHINERY chose a motor from famous brand YASKAWA to drive this machine.
grilyato production line
ceiling grilyato making machine

4. Long Service Life

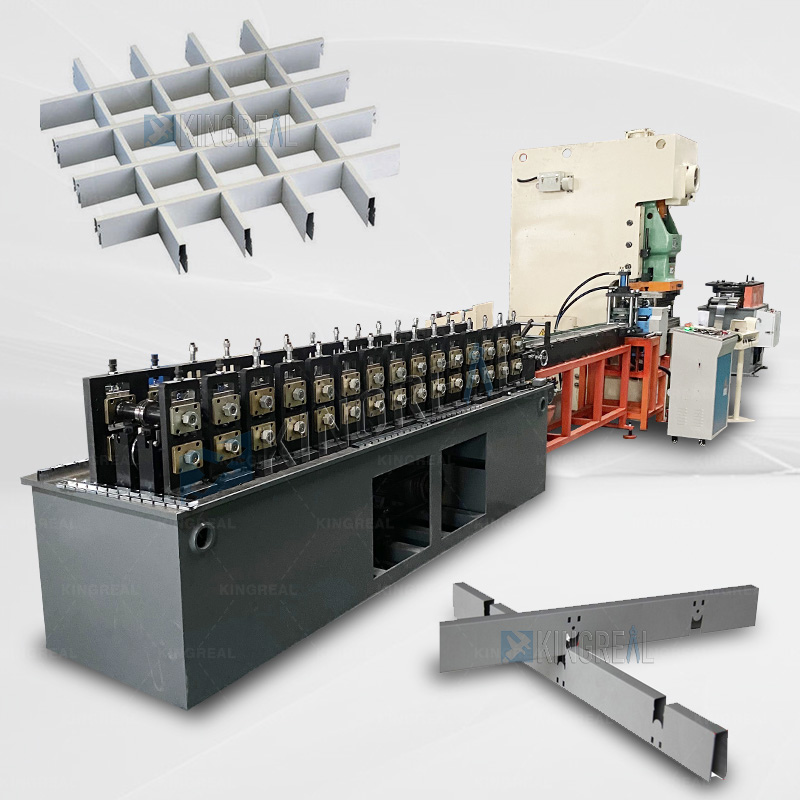

KINGREAL CEILING MACHINERY equipped the suspended ceiling grid production line with a high-quality main roll forming machine. Thick panel for a strong structure, mold steel rollers for precision roll forming, archway architecture to build roller stations. This improves the stability of the suspended ceiling grid machine and prolongs its service life.
This metal grid ceiling production line has been installed in many countries and won a good reputation for us.

Main Processes of Suspended Ceiling Grid Making Machine


Hydraulic Decoiler -- Leveling -- Punching -- Cut to Length -- Main Roll Forming -- Output


open cell ceiling machine


Technical Specs


Machine PartItemSpecification





Material decoiling


Motor Power380V 0.75KW
Max. Loading Weight1Ton
Max inner Diameter520mm
Min. Inner Diameter450mm
Machine Frame MaterialChannel steel and welded steel
Max. Material Width200mm
Operation MethodManual



Punching press

Punching MethodHydraulic Punching
Hole distance tolerance±0.03mm
Other Tolerance±0.3mm
Material Feeding MethodFeed drive servo motor






Roll forming machine





Side Panel TypeWall Panel
Motor Power380V 5.5KW
Material of RollerCr12
Side panel thickness22mm
Reducer3# Cycloid Round
Machine Frame MaterialChannel steel
Roller set12 set
Roller Diameter38mm
Drive ModelGear
Roller MaterialAluminum Material 0.6mm




Cutting and material collecting part

Cutting Device
Hydraulic Track CTL
Length Fix MethodPLC
Cutting Model MaterialCr12 MOV
Cutting MethodHydraulic
Material collecting table dimension (length*width*height)3M*0.7M*0.5M

Material collecting method

Manual collecting




Machine Specification




Control methodPLC
Production Speed7-12m/min
Machine Dimension6*0.7 *0.7m(L*W*H)
Gross Weight2.5


Other Featuring Metal Ceiling Grilyato Machine


As one of the most professional false metal ceiling equipment manufacturers in China, KINGREAL CEILING MACHINERY can provide diverse open grid suspended ceiling machines. KINGREAL CEILING MACHINERY open grid suspended ceiling machines are exported to many countries around the world and have accumulated many successful project cases.


grilyato production line

Standard Grilyato Ceiling Making Machine

Standard open cell ceiling making machine is KINGREAL CEILING MACHINERY’s iconic machine, features with cost-effectiveness, and is favored by many grille manufacturers.

ceiling grilyato making machine

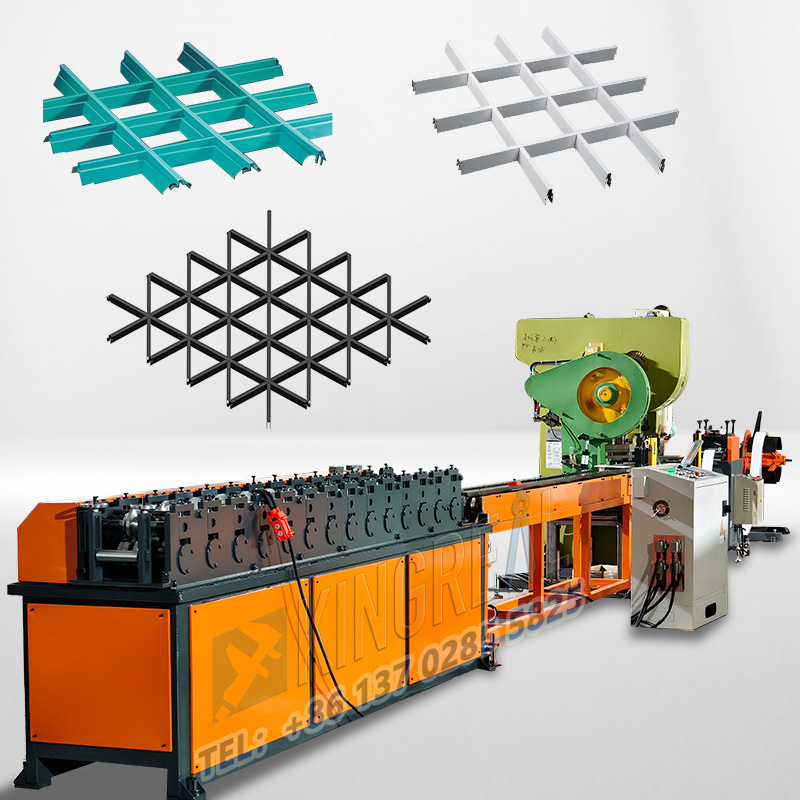

Pyramid Open Cell Ceiling Making Machine

KINGREAL CEILING MACHINERY can also provide a Pyramid Open Cell Ceiling Making Machine. The pyramid metal grid ceiling has a unique shape and is widely favored by the architectural decoration market. It is becoming more and more popular in the market. Therefore, many pyramid metal grid ceiling manufacturers also purchase Pyramid Open Cell Ceiling Making Machine from KINGREAL CEILING MACHINERY.


Quality Control


open cell ceiling machine
grilyato production line
ceiling grilyato making machine
open cell ceiling machine


KINGREAL CEILING MACHINERY's grilyato ceiling machines are made of high-quality, high-hardness, and durable materials to ensure the long-term stability and reliability of the grilyato ceiling machines. The high-precision forming rollers and shearing station blade design make the finished products meet industry standards in quality and precision. KINGREAL CEILING MACHINERY's strict finished product inspection process ensures the excellent quality of each finished product, allowing customers to feel more at ease during use.

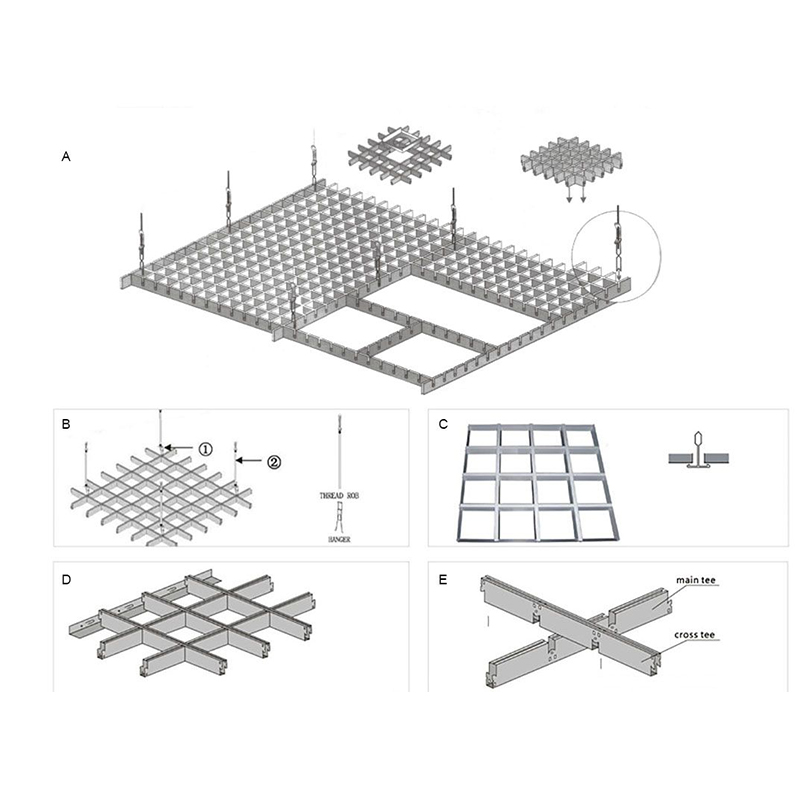

Installation Drawing


grilyato production line


The open cell ceiling is popular for its beautiful, open and easy installation characteristics. In order to help customers better use KINGREAL CEILING MACHINERY's grilyato ceiling production line, KINGREAL CEILING MACHINERY provides detailed installation drawings, and can provide video tutorials for the installation of open cell ceilings according to needs. These videos will provide comprehensive guidance for new customers who have just purchased grilyato ceiling machines, helping them to complete the installation smoothly, ensure the quality and effect of the products, and escort the customers' projects.


Diverse Open Cell Ceiling Solution


ceiling grilyato making machine


Different customers have their own unique production requirements for the type and size of open cell ceilings. To this end, KINGREAL CEILING MACHINERY is committed to providing customized grilyato ceiling machine solutions for each customer. KINGREAL CEILING MACHINERY's grilyato ceiling production lines can produce a variety of types of open cell ceilings, and can also be compatible with aluminum and iron metal raw materials to meet customers' needs for different metal processing. This flexibility allows customers to be more free in both material selection and product design, improving the efficiency and diversity of production.


Technology Support


As a professional manufacturer of roll forming machines in China, KINGREAL CEILING MACHINERY has been in design - production - installation - after-sales for more than 20 years. KINGREAL CEILING MACHINERY is able to customize production solutions according to customer's drawings and specific parameter requirements.


After you order, KINGREAL CEILING MACHINERY technical team will test the machine in an effort to ensure every mechanical and electrical part is in perfect condition.


open cell ceiling machine


KINGREAL CEILING MACHINERY in Canton Fair


grilyato production line


KINGREAL CEILING MACHINERY actively participates in major industry exhibitions and uses this platform to connect with new customers. At the booth, KINGREAL CEILING MACHINERY staff will display a wealth of grilyato ceiling machine pictures and videos, answer customers' questions in detail, and provide cases of past projects for customers to refer to. These interactions not only help customers better understand KINGREAL CEILING MACHINERY's grilyato ceiling production lines, but also lay a good foundation for cooperation between the two parties. During the exhibition, many customers have initially established cooperation intentions with KINGREAL CEILING MACHINERY and look forward to future cooperation opportunities.
