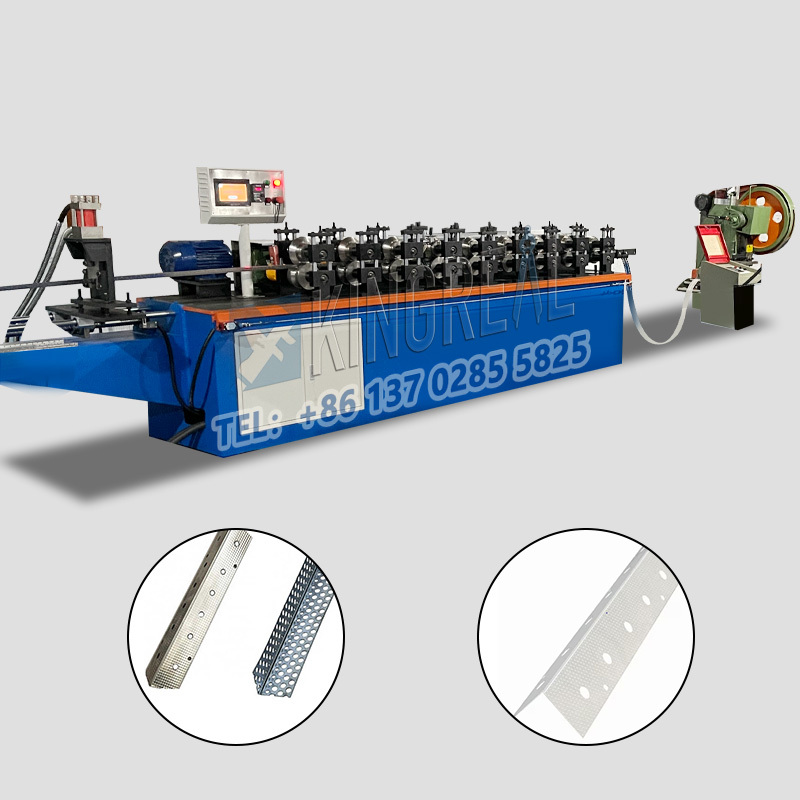

Angle Bead Roll Forming Machine

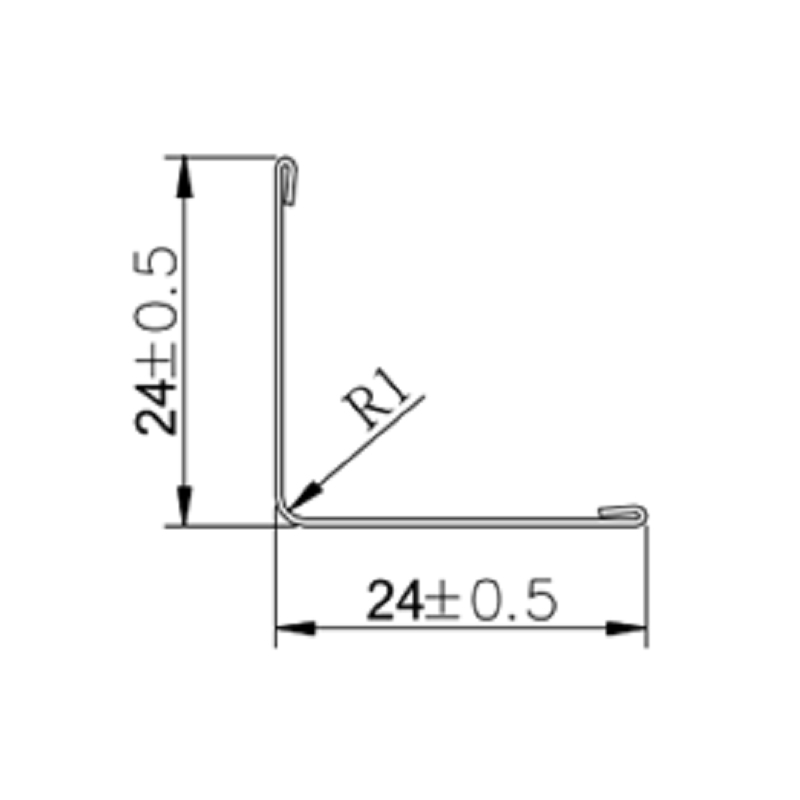

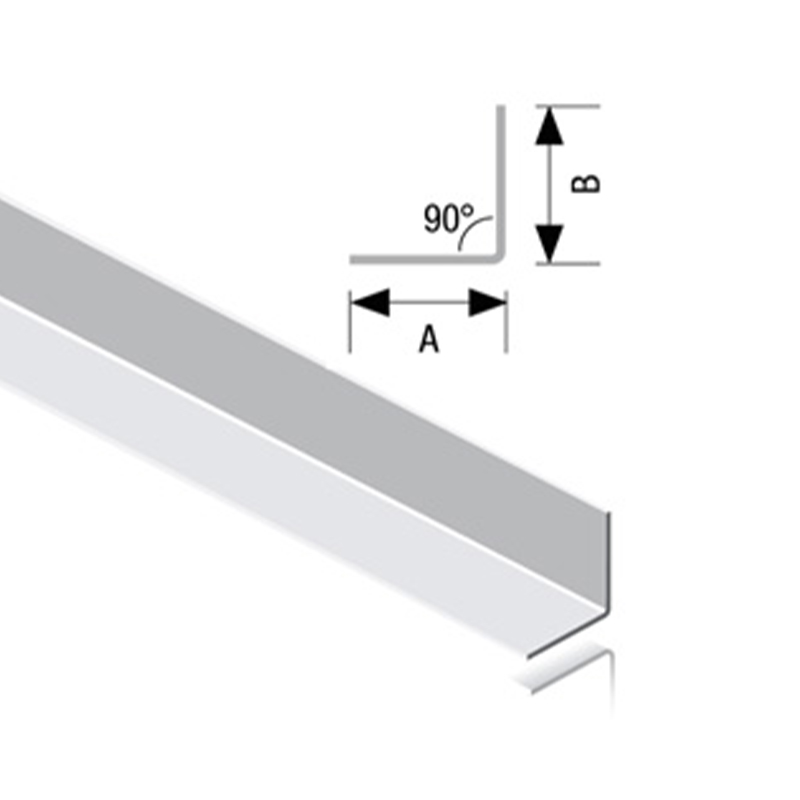

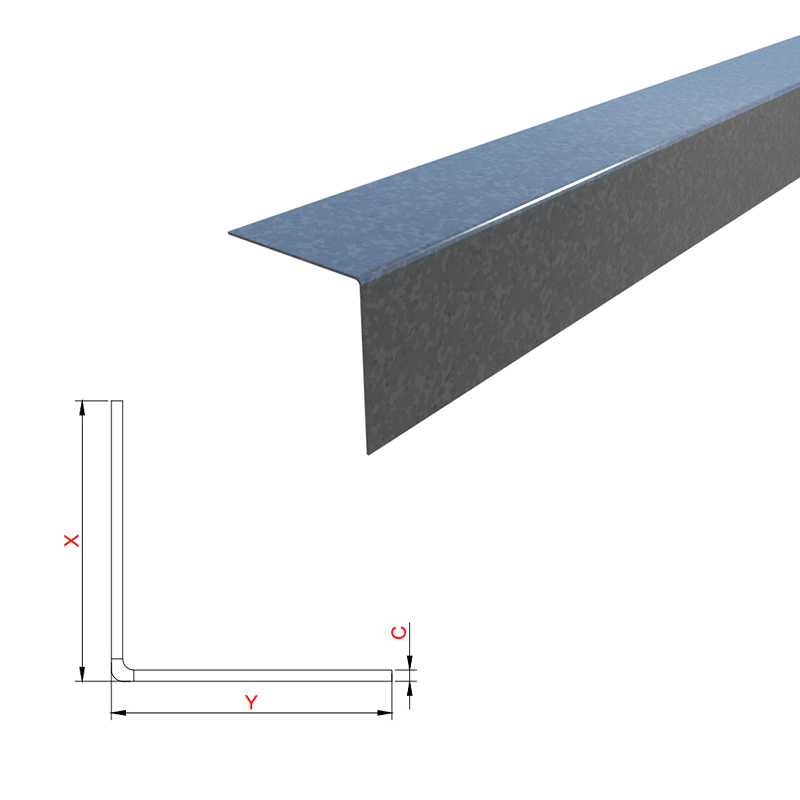

In the modern construction industry, gypsum board partition systems are becoming the mainstream choice for more and more construction projects. In order to meet customers' demand for efficient and high-quality products, KINGREAL CEILING MACHINERY launched the angle bead roll forming machine. Based on high-quality galvanized steel materials, the corner bead roll forming machine uses advanced production processes to produce various specifications of angle beads. Common product sizes include 20x20 mm, 25x25 mm, 27x27 mm and 30x30 mm, with a thickness range of 0.3 to 0.6 mm, suitable for ceiling installation. These angle beads can be used in conjunction with C channel machine, U channel machine, Furring channel machine and Ceiling t grid machines to form a complete production system.

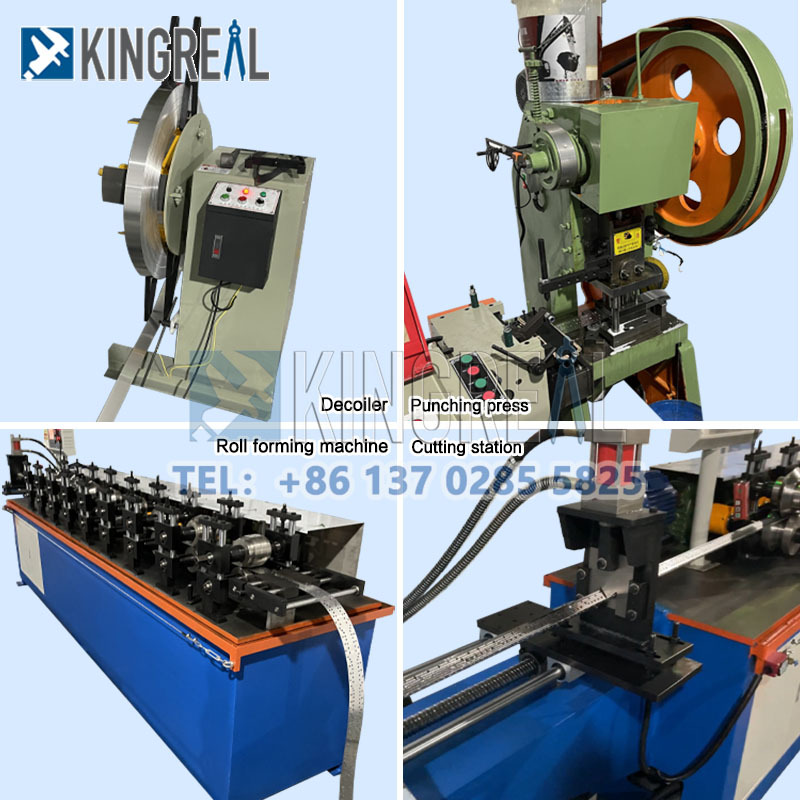

Decoiler

The decoiler is the starting point of the entire corner bead roll forming machine. Its main function is to support and guide the uncoiling of the steel coil to ensure the stability and smoothness of the material during processing. The design of the decoiler takes into account the convenience and safety of operation, allowing workers to operate it easily during use.

Punching Press

The function of the punching press is to punch out the required holes in the metal coil and provide the basis for subsequent forming. KINGREAL CEILING MACHINERY punching press has a unique design that not only improves production efficiency, but also reduces the need for pre-treatment of the workpiece, making the production process more simplified.

Main Roll Forming Machine

The main roll forming machine is the core component of the production of perforated angle beads. It is made of high-quality materials to ensure the high strength and good surface quality of the product. The rollers are specially treated and made of 45# steel, plated with 0.05mm chrome, and polished to have good wear resistance and rigidity. The metal coils are rolled to form various shapes of corner beads, which can maintain stable performance in long-term use and ensure the consistent quality of the corners produced

Cutting Station

The cutting station is hydraulically driven to achieve precise cutting. The blade material of the cutting station is Cr12, which is quenched and has good durability and cutting accuracy. The product length can be adjusted according to customer needs. Its cutting accuracy is within ±1.0mm, ensuring high consistency and high quality of each batch of products. In this link, KINGREAL CEILING MACHINERY engineers designed hydraulic drive and automatic positioning functions for the cutting station of the corner bead roll forming machine to ensure the precise size of the product.

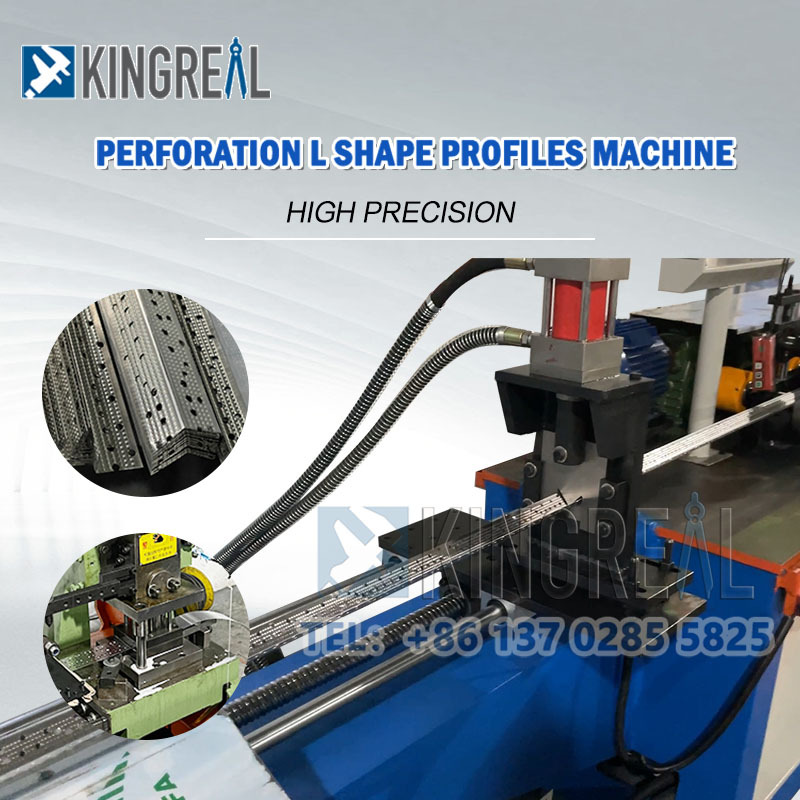

(1) Automatic hydraulic cutting device

KINGREAL CEILING MACHINERY corner bead roll forming machine is equipped with an advanced automatic hydraulic cutting device. The carefully designed hydraulic power system enables the angle bead roll forming machine to operate stably for a long time. The cutting parts are made of SKD11 die steel, which is vacuum heat treated and has a hardness of up to HRC 58-61°. It has excellent wear resistance and rigidity, ensuring the long life of the angle bead roll forming machine.

(2) Equipped with a punching press

Unlike many traditional corner bead roll forming machines on the market, KINGREAL CEILING MACHINERY angle bead roll forming machine is equipped with a punching press, which makes the production process from unwinding to punching to forming and cutting in one go, greatly improving production efficiency. No additional perforation and cutting steps are required, saving time and labor costs.

(3) One-stop partition system solution

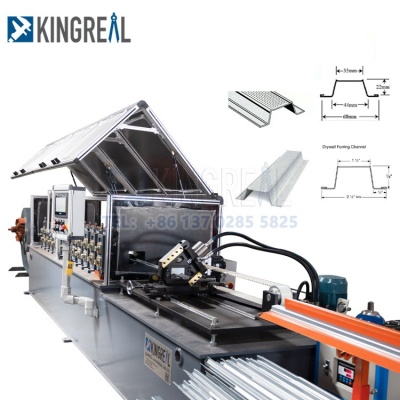

In addition to the corner bead roll forming machine, KINGREAL CEILING MACHINERY can also provide customers with C channel machines, U channel machines, Furring channel machines and Ceiling t grid machines. Ensure that the finished products can be seamlessly connected to form a complete partition system.

Corner bead: Perforated corner bead is used to reinforce the corner, protect the wall structure, and provide a smooth joint.

C channel and U channel: These channels are often used to build wall frames to provide support and stability.

Furring channel: usually used for ceiling and partition support to enhance the stability of the overall structure.

Ceiling t grid: used for ceiling system to support and fix ceiling panels.

In practical applications, angle beads and C channels, U channels and other materials together constitute the load-bearing structure and exterior decoration of the building. Through effective connection and fixation, a stable overall structure is formed to ensure the safety and beauty of the building.
