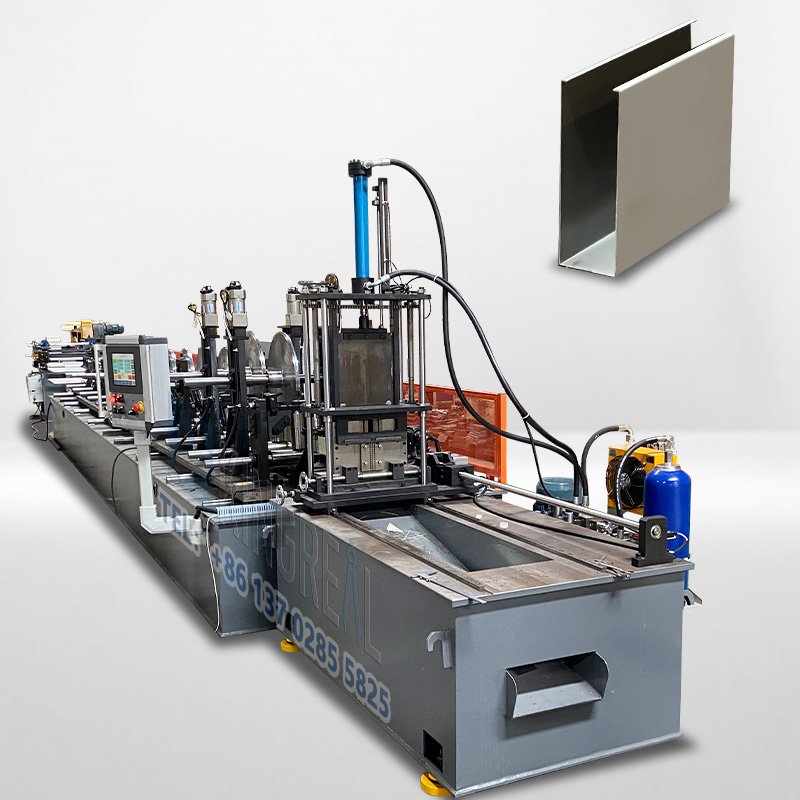

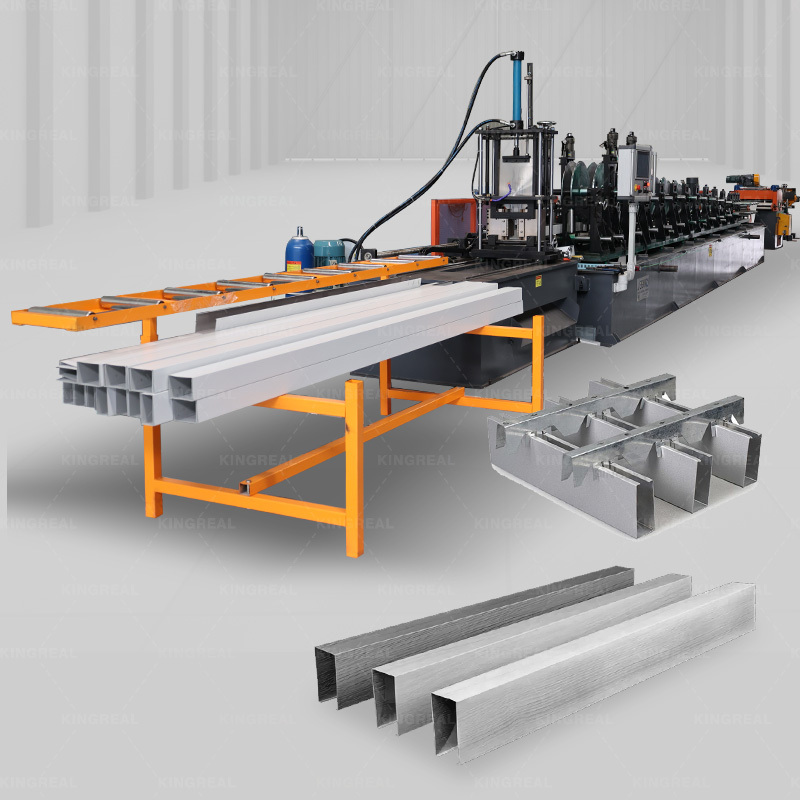

U Baffle Ceiling Production Line

Aluminum U Baffle Ceiling Production Line is one of KINGREAL CEILING MACHINERY‘s most featuring u baffle ceiling making machines, it can flexibly produce metal baffles of different widths and heights. This baffle forming machine has been favored by many baffle ceiling manufacturers due to its fast production speed and high flexibility, and has now been successfully exported to many countries around the world.

  • KINGREAL CEILING MACHINERY
  • China
  • 90 Days
  • 9999

Details

Video Display About Aluminum Ceiling U Baffle Machine

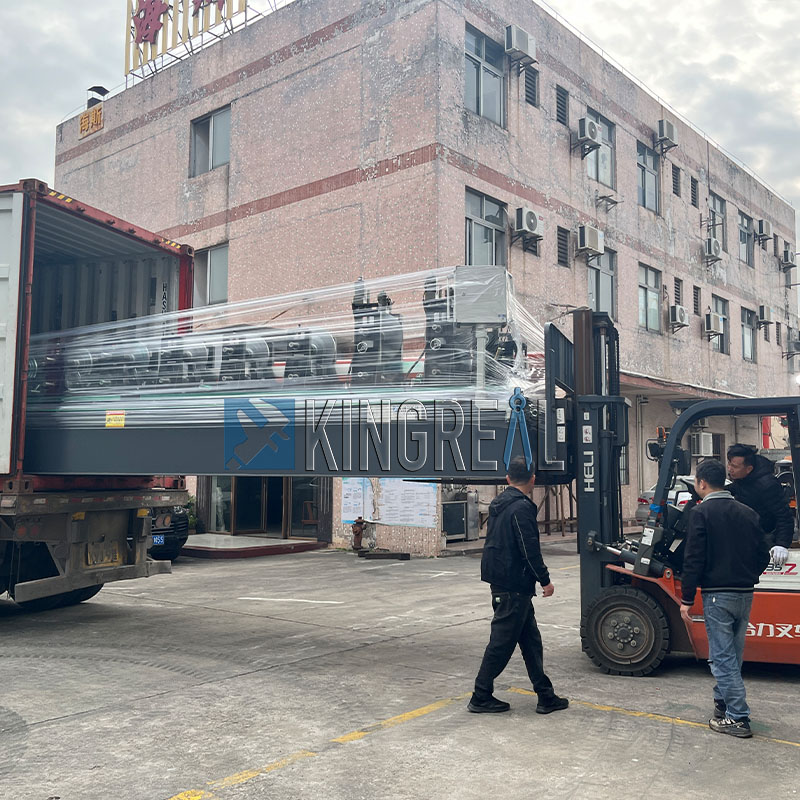

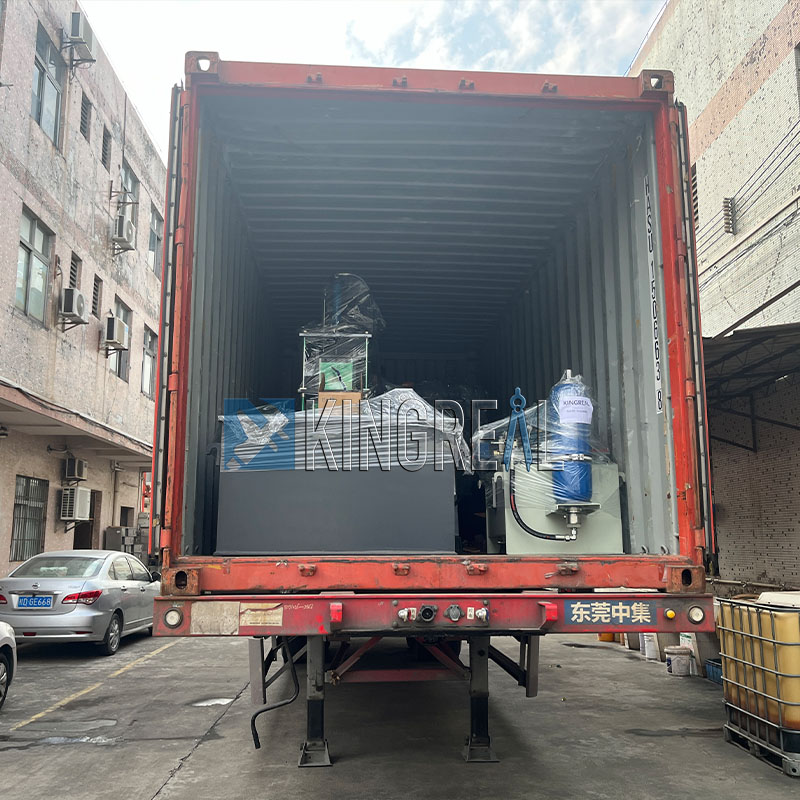

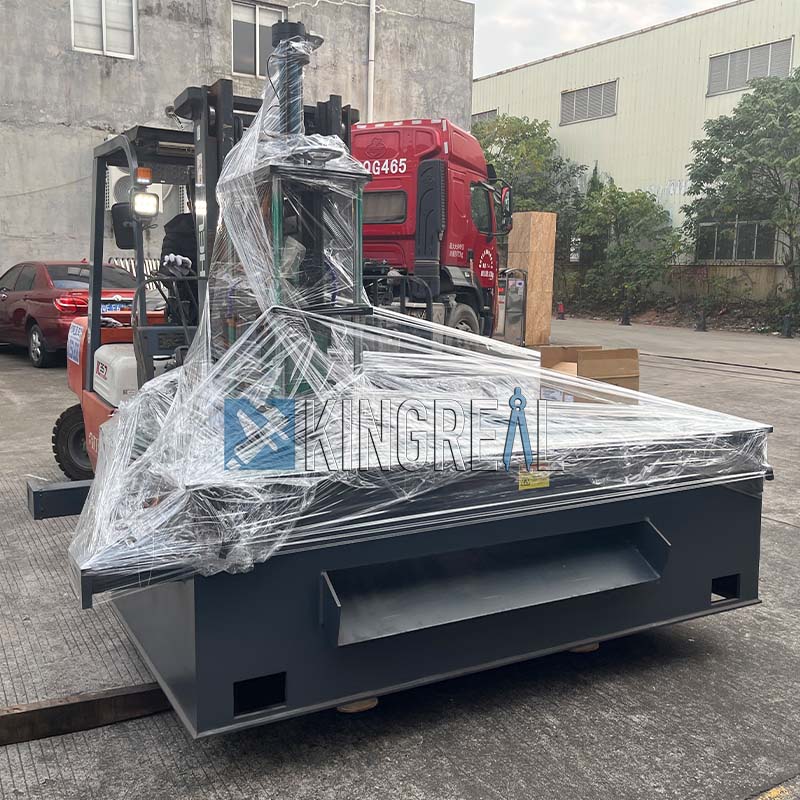

KINGREAL CEILING MACHINERY Successful Cases in Global


ceiling u baffle machine


KINGREAL CEILING MACHINERY has close contacts with customers from many countries. Various types of baffle ceiling machines, including 150mm height u baffle machines, 200mm height u baffle machines, 300mm height u baffle machines, baffle ceiling machines with protective shields, have been sold to India, Italy, Saudi Arabia, Turkey, Mexico, Russia, the Netherlands and other countries.


Description of  Aluminum U Baffle Ceiling Production Line

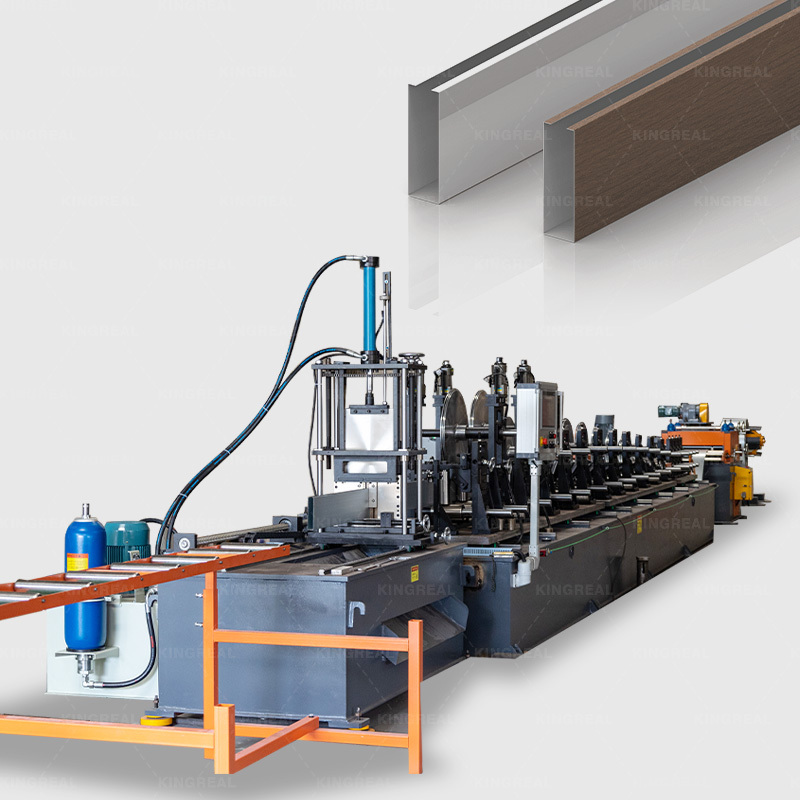

KINGREAL CEILING MACHINERY Aluminum U Shape Baffle Ceiling Production Line is designed for producing baffle ceilings with 25-100mm width and 75-300mm height. The material thickness range is compatible with 0.5-1.1mm aluminum. If you want to produce metal baffles made of other materials, this baffle machine can also produce stainless steel baffle ceilings at the same time. Because of its flexible production characteristics, it is highly favored by u baffle ceiling manufacturers.

u baffle machine

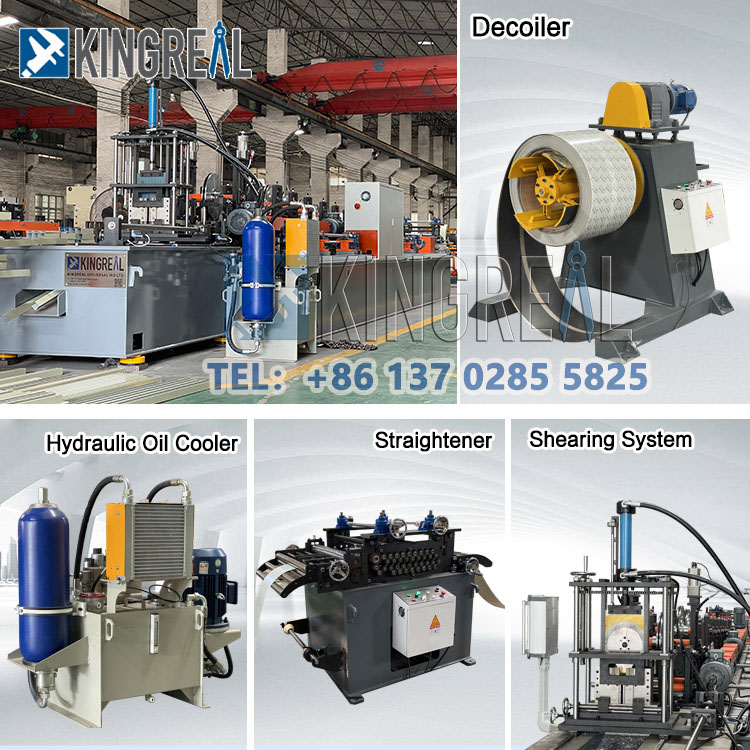

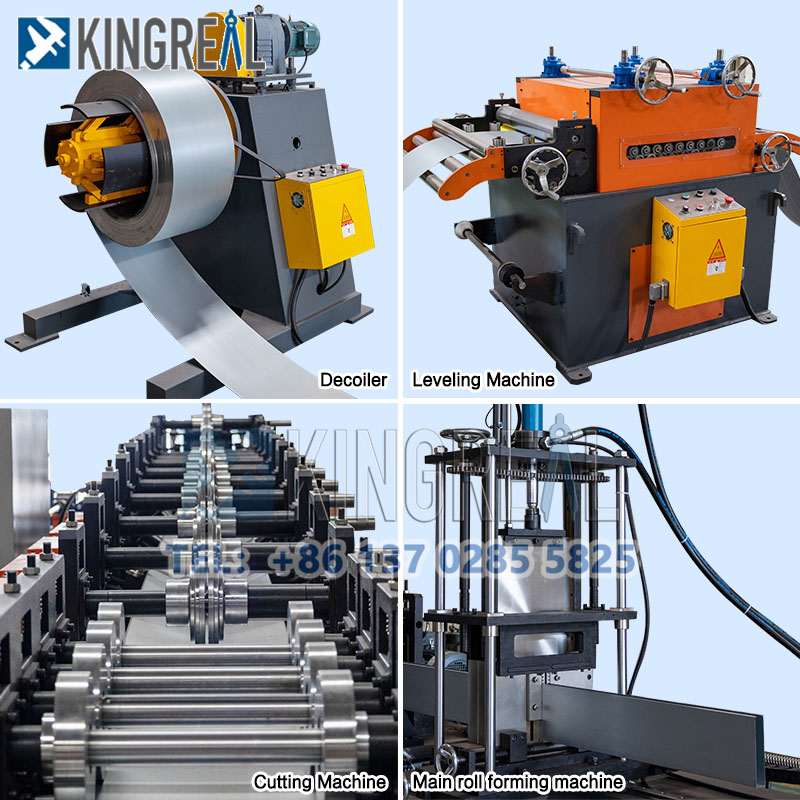

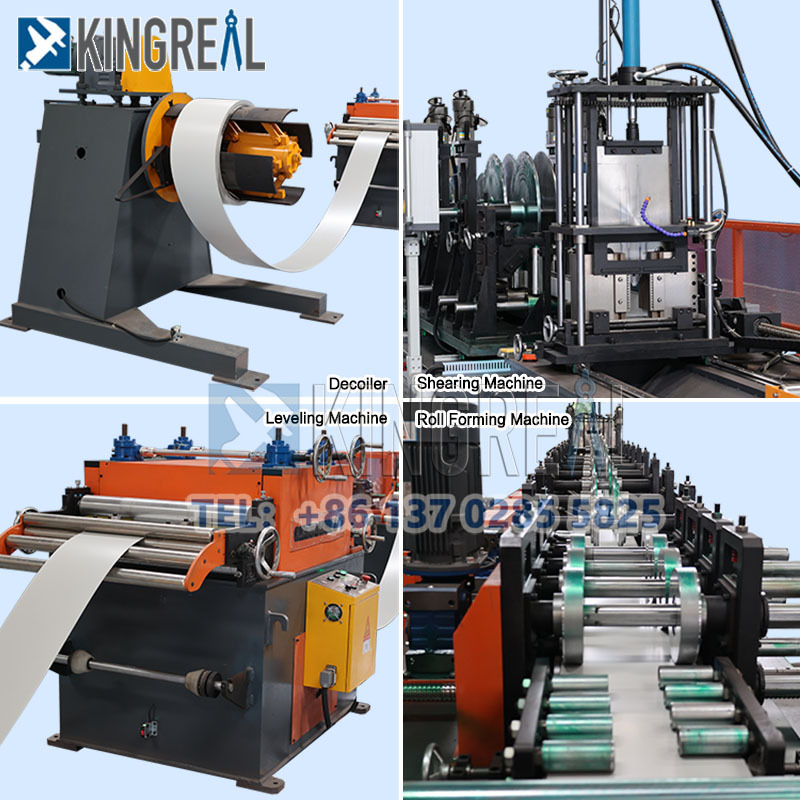

Main Components


baffle forming machine

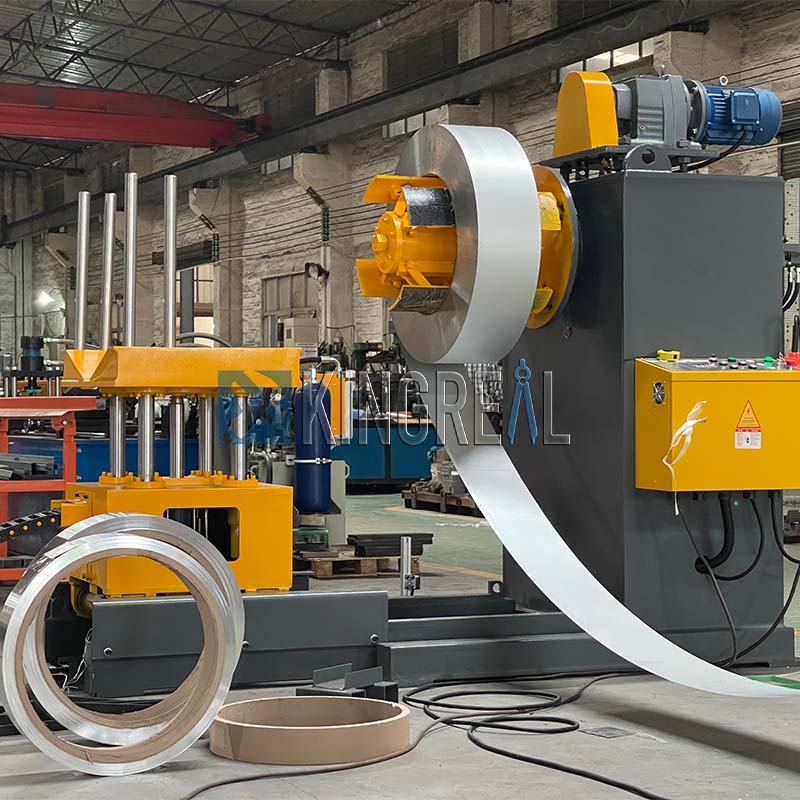

Decoiler

ceiling u baffle machine

Leveler

u baffle machine

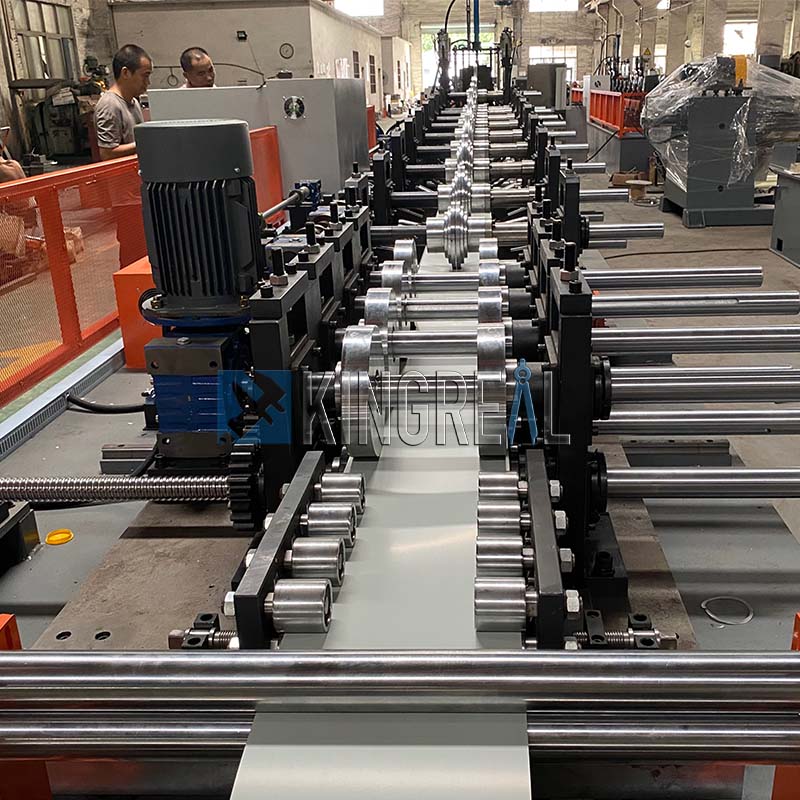

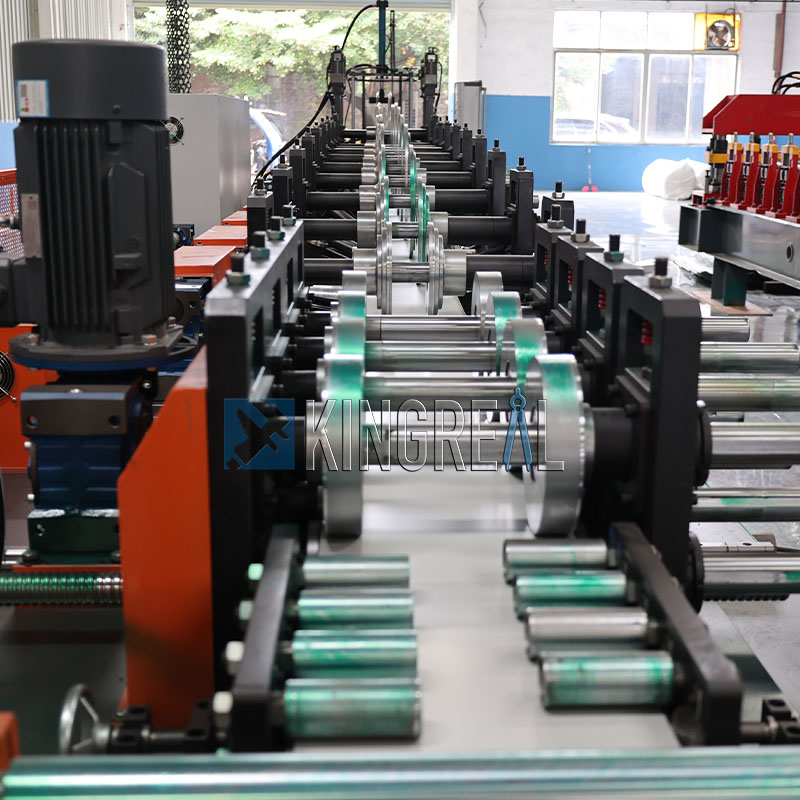

Roll Forming Machine

baffle forming machine

Shearing System


KINGREAL CEILING MACHINERY's u baffle machine is composed of precision parts such as decoiler, leveler, roll forming machine, shearing system, etc. Each part is made of high-quality raw materials and undergoes rigorous production and manufacturing processes. Therefore, the u baffle machine manufactured by KINGREAL CEILING MACHINERY has the characteristics of good quality, durability and low maintenance cost.


Working Processing of Aluminium Baffle U Channel Machine


ceiling u baffle machine


Hydraulic Decoiler -- Precision Straightener -- Main Roll Forming Machine -- Following Shearing Station -- Output Table


Features of Aluminium Baffle Ceiling Roll Forming Machine


※ Optional Trolley

KINGREAL CEILING MACHINERY  provides a trolley for you to equip on the hydraulic decoiler. Combination hydraulic decoiler and trolley can not only save manpower and time in the coil loading process, but also improve the automation of the entire aluminium baffle ceiling production line. A highly automated production line means shorter production time and higher economic benefits.
u baffle machine
baffle forming machine

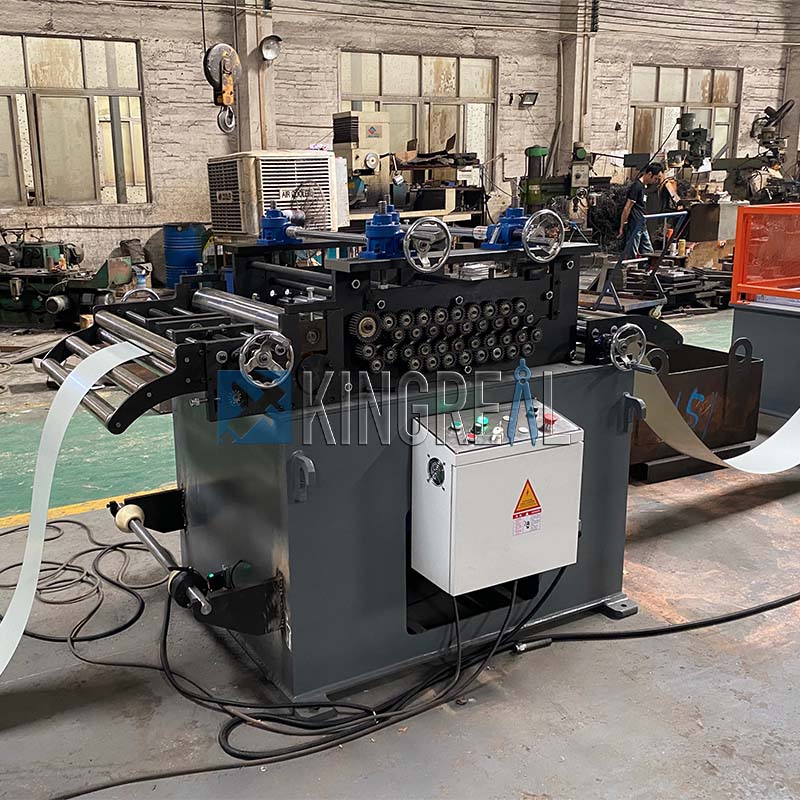

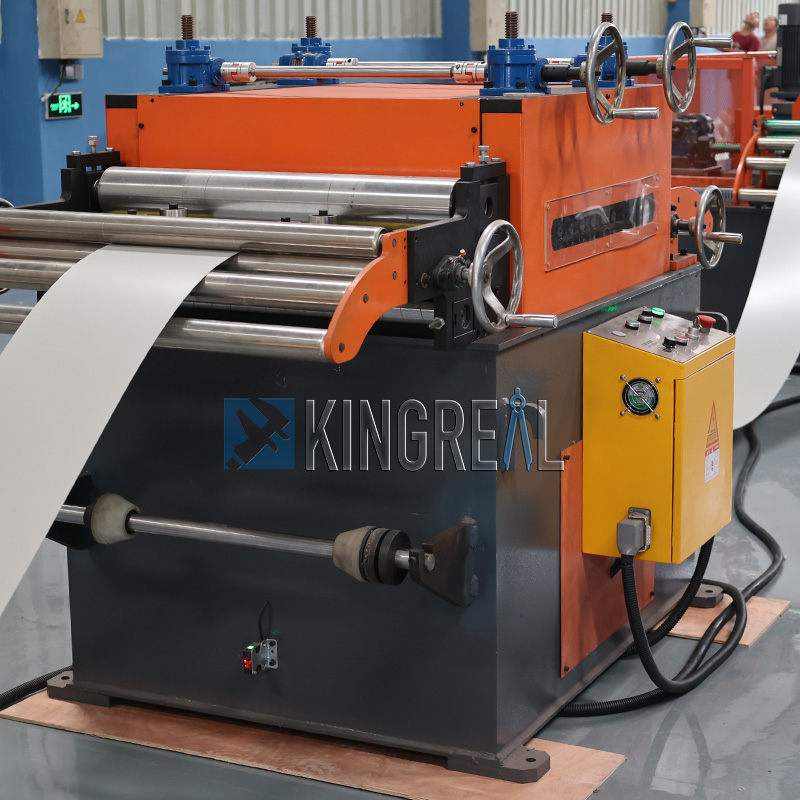

※ Precision Straightener

The leveler adopts 21 rollers straightening device, which can realize high degree precise leveling. The roller of the leveler is hard chrome plated to ensure the surface smoothness, strength and endurable to avoid the scratch on the baffle ceilings surface.

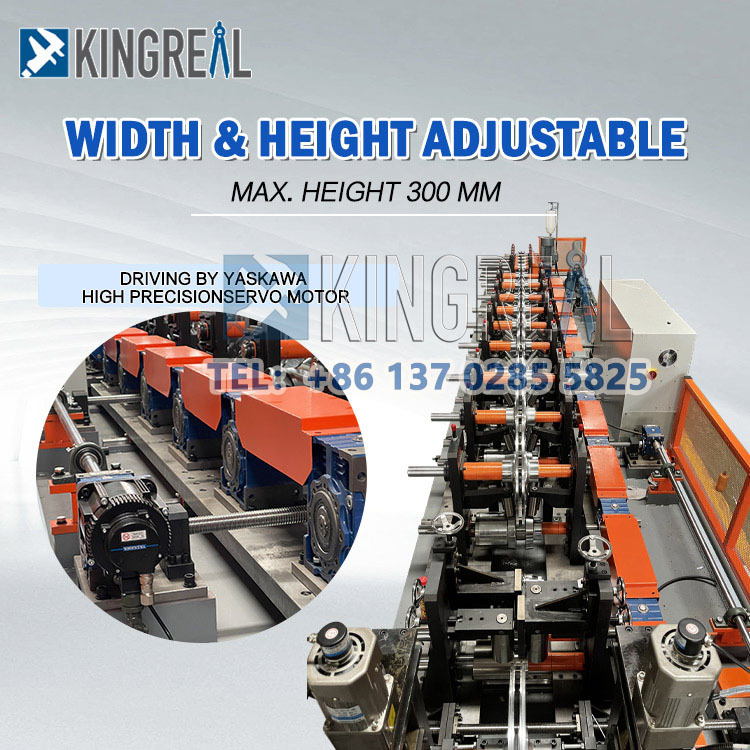

※ Adjustable Sizes

Baffle sizes can be adjusted from 25mm to 250mm, this is the common sizes of baffle ceilings, if you have a requirement to produce larger sizes of aluminium baffle ceilings, KINGREAL CEILING MACHINERY  also can provide customized service, KINGREAL CEILING MACHINERY  300 mm height baffle ceiling making machine is one of KINGREAL CEILING MACHINERY  most successful customized projects which designed for Douglas Group.


KINGREAL CEILING MACHINERY  has more than 20 years of design-production u baffle ceiling roll forming machine experience, if you have any requirements, please do not hesitate to contact us!

ceiling u baffle machine

Parameter of Metal Ceiling Machine


u baffle machine


Diverse U Baffle Ceiling Solution


baffle forming machineceiling u baffle machineu baffle machine
150 mm baffle false ceiling roll forming machine

Height range: 35-150mm

Width range: 30-100mm

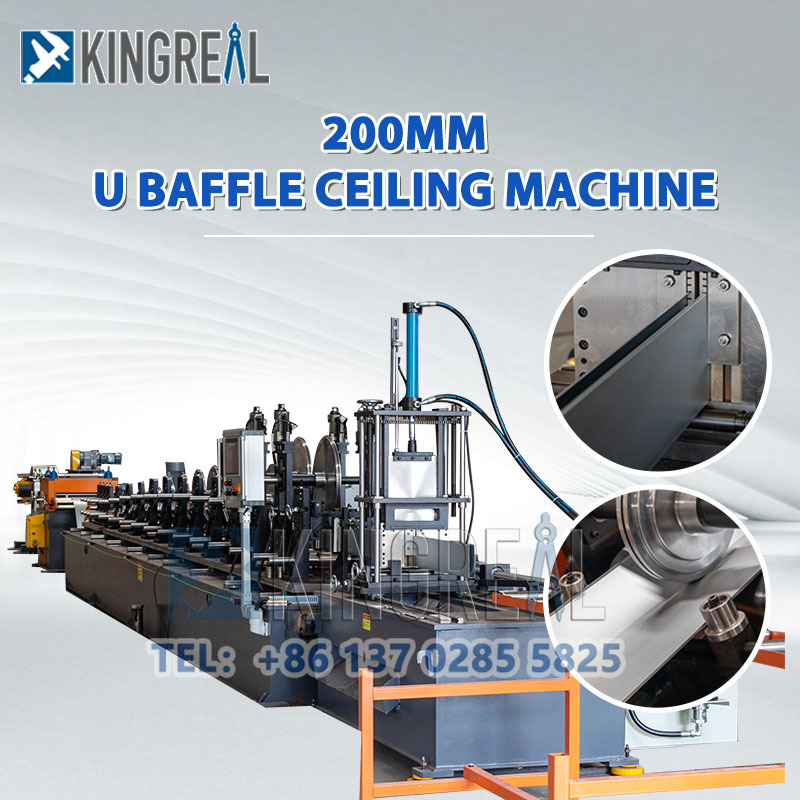

200 mm u baffle ceiling roll forming machine

Height range: 35-200mm

Width range: 30-100mm
300 mm metal baffle ceiling roll forming machine

Height range: 35-300mm

Width range: 50-100mm

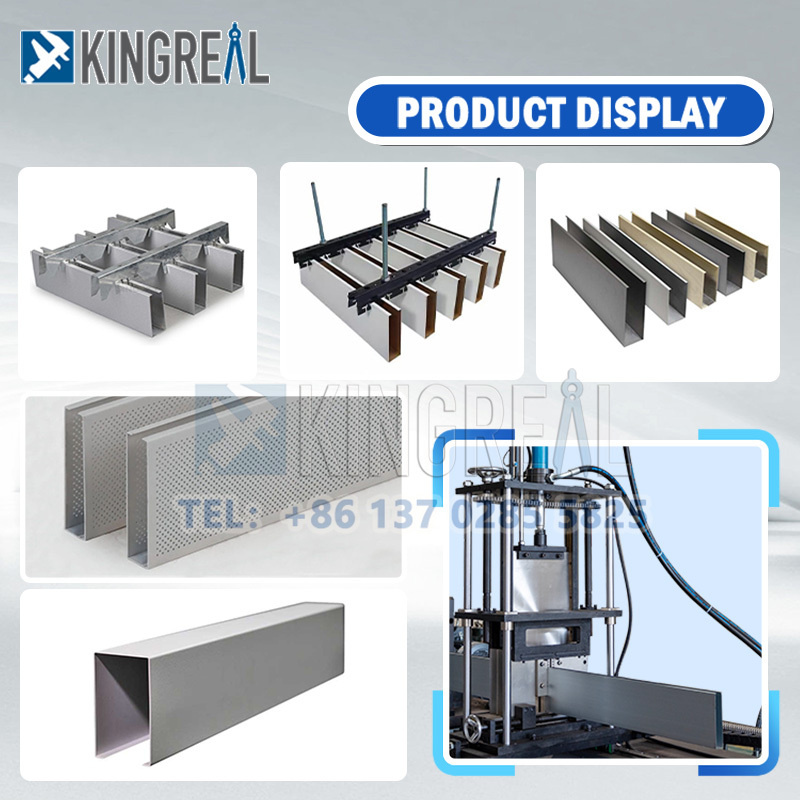

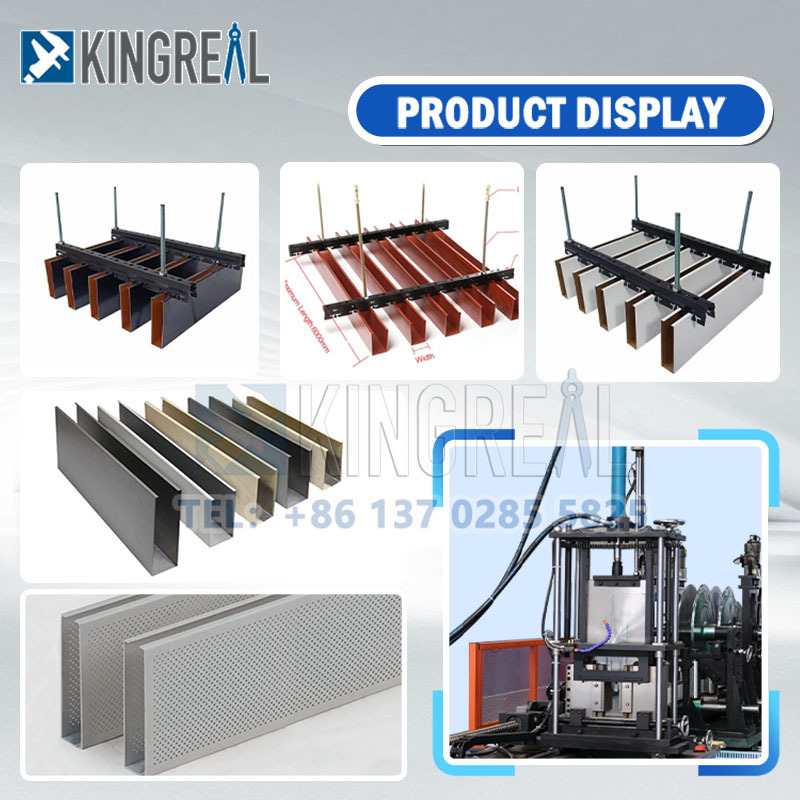

What KINGREAL CEILING MACHINERY U Baffle Ceiling Making Machine Can Produce


baffle forming machine


KINGREAL CEILING MACHINERY baffle ceiling machine can process metal raw materials of Gi Steel or aluminum to produce baffle ceilings of different sizes with a width of 25-100mm and a height of 75-300mm, such as U-shaped baffle ceiling, V-shaped baffle ceiling, U-shaped baffle ceiling with U-bent, etc.


FAQ


1. What is aluminum baffle ceiling machine?

2. What is the purpose of baffle making ceiling machine?

3. How to test the quality of baffle ceiling machine?

4. What is the origin of baffle ceiling?

5. How to Ensure Every Baffle Meets the Standards?


Technology Support



As a professional manufacturer of baffle ceiling making machines in China, KINGREAL CEILING MACHINERY has been in design - production - installation - after-sales for more than 20 years. KINGREAL CEILING MACHINERY is able to customize production solutions according to customer‘s drawings and specific parameter requirements.


After you order, KINGREAL CEILING MACHINERY technical team will test the machine in an effort to ensure every mechanical and electrical part is in perfect condition.


ceiling u baffle machine


KINGREAL CEILING MACHINERY in Diverse Exhibitions


u baffle machine


KINGREAL CEILING MACHINERY actively participates in various exhibitions to showcase KINGREAL CEILING MACHINERY's high-quality u baffle machines to more customers. Through these exhibitions, KINGREAL CEILING MACHINERY can not only communicate with customers face to face and understand their latest needs and market trends, but also demonstrate KINGREAL CEILING MACHINERY's leading advantages in technological innovation and product quality.



At the exhibition, KINGREAL CEILING MACHINERY professional team will introduce in detail the characteristics and applications of KINGREAL CEILING MACHINERY's u baffle machines, including their efficiency, reliability and flexibility. KINGREAL CEILING MACHINERY hopes that through these interactions, customers will have a deeper understanding of how KINGREAL CEILING MACHINERY's products can help them improve production efficiency, reduce costs, and achieve higher output value.
