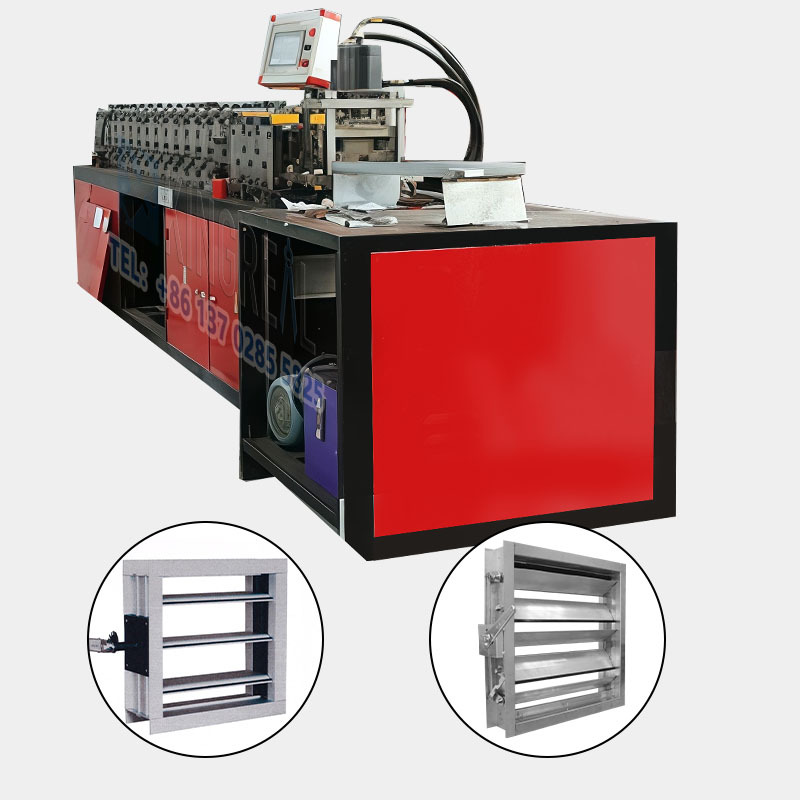

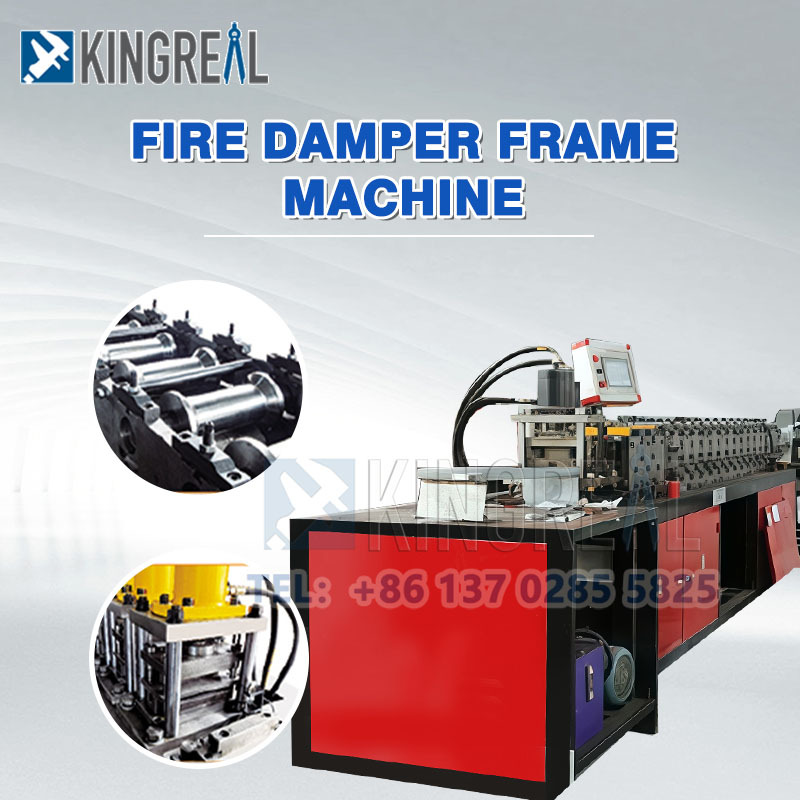

Fire Damper Frame Machine

Fire damper frame machine is an important part of the HVAC ventilation system, which is specially used to produce fire dampers or smoke dampers, which are passive fire protection products for heating, ventilation and air conditioning (HVACR) ducts.

KINGREAL CEILING MACHINERY adopts fully automatic technology in the fire damper frame production line, which has high precision and low scrap rate.

  • KINGREAL CEILING MACHINERY
  • China
  • 90 Days
  • 9999

Details

Video About

Fire Damper Frame Machine




Definition Of Fire Damper Making Machine


This fire damper frame production line adopts fully automatic technology, and only a small amount of manpower is required from unwinding to finished fire damper frame output, which greatly facilitates production and improves the consistency of finished products. In order to meet different production needs, KINGREAL CEILING MACHINERY has designed two fire and smoke dampers bending methods, namely manual folding frame and riveted frame. KINGREAL CEILING MACHINERY also provides customized fire damper making machine manufacturing services, and customers can choose different production solutions according to production needs.



The fire damper frame production line is controlled by the PLC, main components including the decoiler, leveler, punching station, main roll forming machine and auto bending machine.

 fire damper frame production line

Description of Fire Damper Making Machine


✦ Workflow of fire damper frame production line



fire damper making machine


Hydraulic Decoiler -- Precision Leveler -- Punching Station -- Main Roll Forming Machine -- Hydraulic Bending Cutting Station -- Output Table

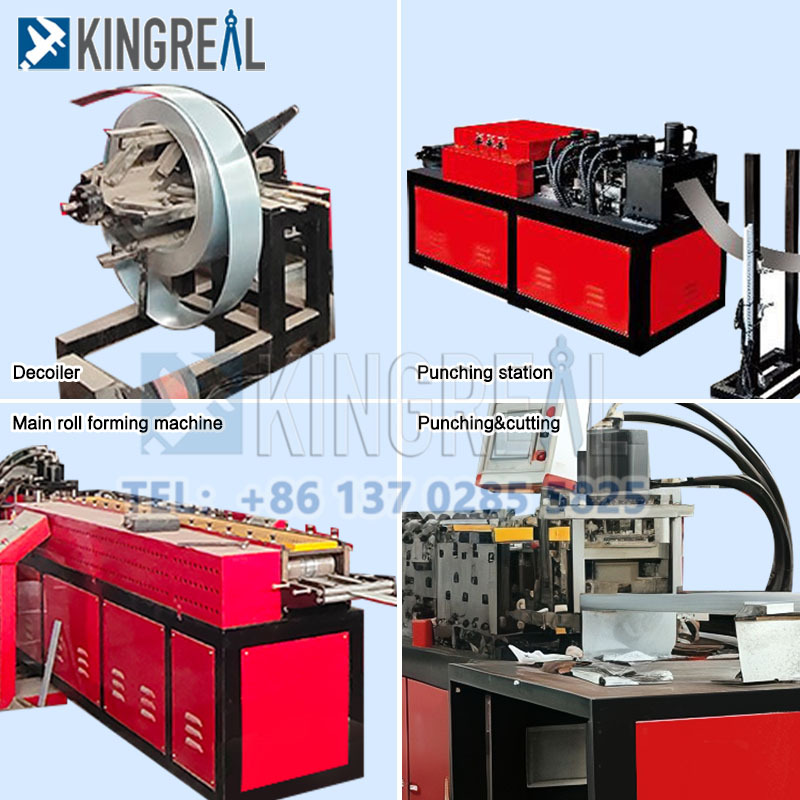

✦ Main components of fire damper making machine



Hydraulic decoiler1 set
Precision leveler1 set
Punching dies6 sets
Main roll forming machine1 set
PLC control box1 unit
Hydraulic station1 unit
Hydraulic cutting device1 unit
Out table1 unit


✦ Specification of fire damper frame machine


Equipment occupying space20×3×2 (length × width × height) meters
Weight26 tons
Unloader load capacity5 tons
Forming frame15-18 passes (according to different shapes)
Leveling and feedingnine-rollers leveling
Cut-off size tolerance≤ ±0.5mm
Production speed0-12m/min


Different Bending Technology



In order to meet different production needs, KINGREAL CEILING MACHINERY has designed two fire and smoke dampers bending methods -- integrated hand-folding frame and riveting frame.



✦ Integrated hand-folding frame



Integrated hand-folding frame is a traditional bending technology that is widely used. The bending part is integrated with the fire damper making machine and there is no need to purchase additional accessories.



✦ Riveting frame



Riveting is a commonly used connection method in modern industry, which has the advantages of strong bearing capacity, corrosion resistance, shock resistance, etc. Rivets can maintain their stability even in high temperature environments, so riveting technology is very suitable for fire damper frame production.



fire damper frame production line


Advantages Of Fire Damper Frame Production Line


(1) Stable operation


The electrical components used by KINGREAL CEILING MACHINERY fire damper making machine are all selected from well-known domestic and foreign brands, ensuring the reliability and durability of the electrical system. By adopting high-standard components, KINGREAL CEILING MACHINERY fully considered the performance of the fire damper frame production line in high-intensity and high-load working environments during the design stage.


The main mechanical parts have been carefully designed and rigorously fatigue tested to ensure that there will be no performance degradation or failure in long-term use. This stability allows customers to put into production with confidence, reducing downtime caused by equipment failure, thereby improving overall production efficiency.



(2) High degree of automation


The length and width of the fire damper frame of the KINGREAL CEILING MACHINERY fire damper making machine can be flexibly adjusted through the programmable PLC system.


The user only needs to simply enter the required parameters into the touch screen operating system, and the machine will automatically make the corresponding adjustments. This intelligent design not only greatly simplifies the operation process, but also reduces the possibility of human error, making the production process more efficient and accurate.



In addition, KINGREAL CEILING MACHINERY touch screen operating system also provides multiple language options for operators from different regions and cultural backgrounds. This humanized design consideration allows operators to easily get started and quickly master the use of the fire damper frame machine, thereby improving production efficiency. Highly automated fire damper frame production line also means that it can reduce dependence on manual labor, reduce labor costs, and improve production safety to a certain extent.



(3) Advanced Punching Station


The punching station of KINGREAL CEILING MACHINERY fire damper making machine adopts a multi-station hydraulic punching machine, which can be customized according to the hole position of different profiles, which allows the machine to perform diversified punching operations such as multi-station punching and corner cutting. This flexibility means that customers can adjust the settings of the punching station according to their own production needs, thereby achieving higher production efficiency and product quality.



KINGREAL CEILING MACHINERY punching station excels in speed, precision and stability. High-speed punching not only improves production efficiency, but also speeds up the production rhythm while ensuring quality, meeting customers' strict requirements for delivery time. At the same time, high-precision punching technology ensures product consistency and reliability, reduces rework and waste caused by inaccurate hole positions, and further reduces production costs.



fire damper making machine
fire damper frame production line
fire damper making machine

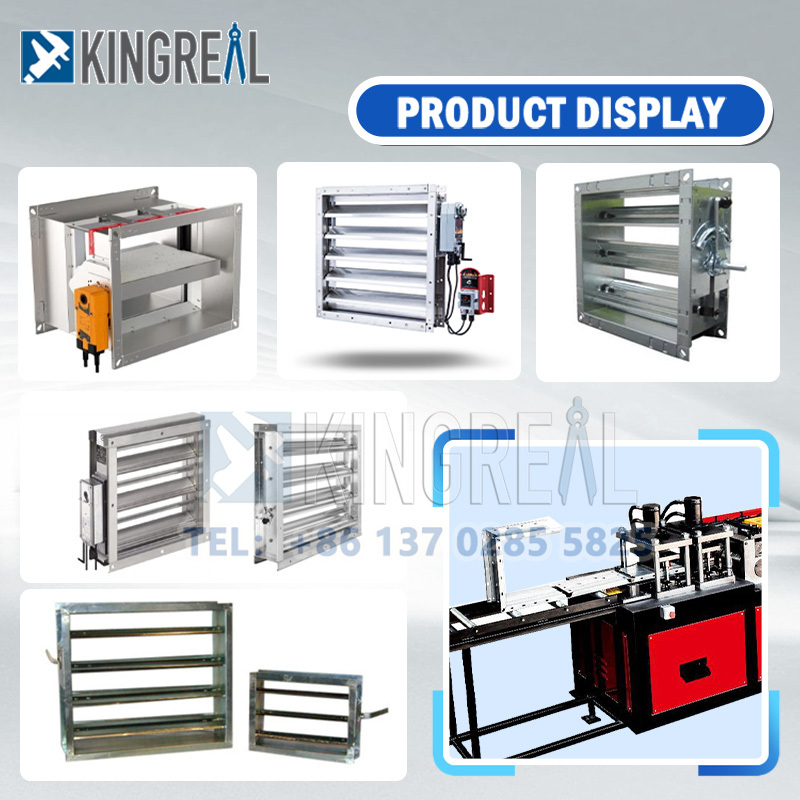

Product Display


fire damper frame production line


Fire Damper Frame is mainly used in the fire protection system of buildings. It has the advantages of fire resistance, high temperature resistance and easy installation. It is often used in commercial buildings, industrial facilities, public facilities, residential buildings, etc.


Customer Visit


KINGREAL CEILING MACHINERY warmly welcomes customers from all over the world to visit our factory to visit our roll forming machines. KINGREAL CEILING MACHINERY will provide customers with comprehensive and professional services to ensure that you have a deep understanding of our machines.



After you arrive at the factory, KINGREAL CEILING MACHINERY will send experienced staff to accompany you throughout the journey and take you to visit the fire damper making machine. These staff will provide you with detailed machine explanations, answer various questions you may encounter during use, and share our latest progress in technological innovation and production processes.



KINGREAL CEILING MACHINERY especially invites customers to operate our machines in person, so that you can experience the performance and advantages of KINGREAL fire damper frame production line in practice. Through personal experience, you will have a deeper understanding of the equipment's operating procedures, functional characteristics, and how to maximize production efficiency.



In addition, customers can also participate in the inspection of finished products and observe KINGREAL CEILING MACHINERY strict standards and processes for quality control. This will not only help you evaluate the actual performance of the equipment, but also allow you to personally witness KINGREAL CEILING MACHINERY commitment to quality.


fire damper making machine
fire damper frame production line
fire damper making machine



Technology Support


As China's leading roll forming machine manufacturer, KINGREAL CEILING MACHINERY has more than 20 years of experience in design, production, installation and after-sales service. KINGREAL CEILING MACHINERY is able to tailor production solutions to meet different needs based on the drawings and specific parameters provided by customers.



After the fire damper frame machine is manufactured, KINGREAL CEILING MACHINERY's technical team will conduct a comprehensive test of the fire damper frame production line to ensure that each mechanical and electrical component is in good condition. In addition, KINGREAL CEILING MACHINERY will perform precision measurements on the finished product to ensure that it meets the customer's requirements and is consistent with the promises in the plan. Only when these standards are met will the fire damper making machine be deemed qualified and sent to the customer's factory.


fire damper frame production line
