HVAC Spiral Duct Making Machine
KINGREAL CEILING MACHINERY HVAC Spiral Duct Making Machine is mainly used to produce HVAC spiral ducts of different diameters using molds of different diameters. KINGREAL CEILING MACHINERY can provide types of forming mold with different types of cutting device which suit different needs. KINGREAL CEILING MACHINERY spiral duct forming machine has the characteristics of easy operation, fast forming speed and accurate pipe diameter.
- KINGREAL CEILING MACHINERY
- China
- 90 Days
- 9999
Details
Video About

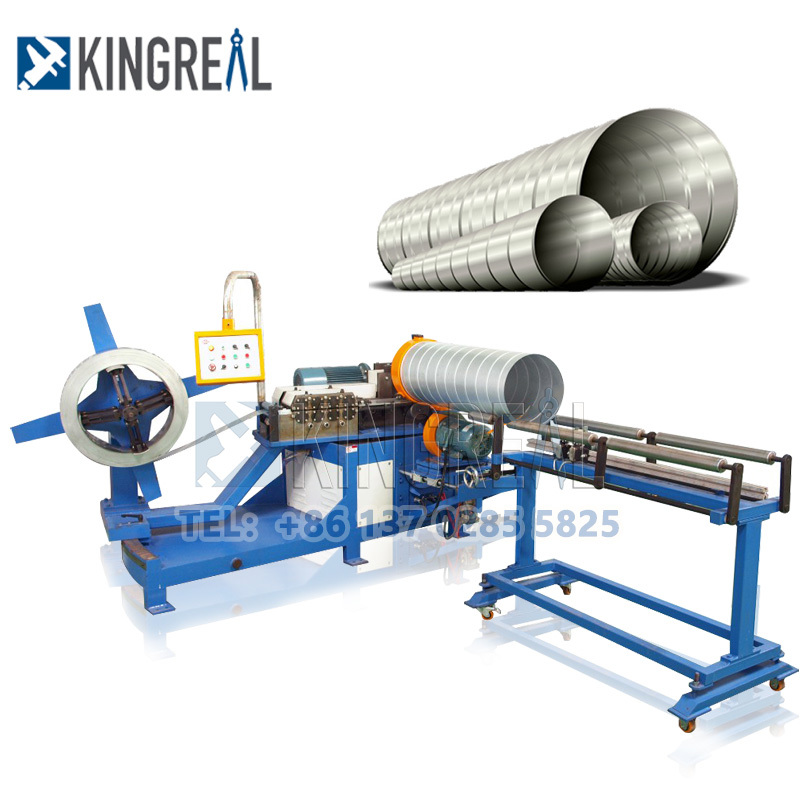

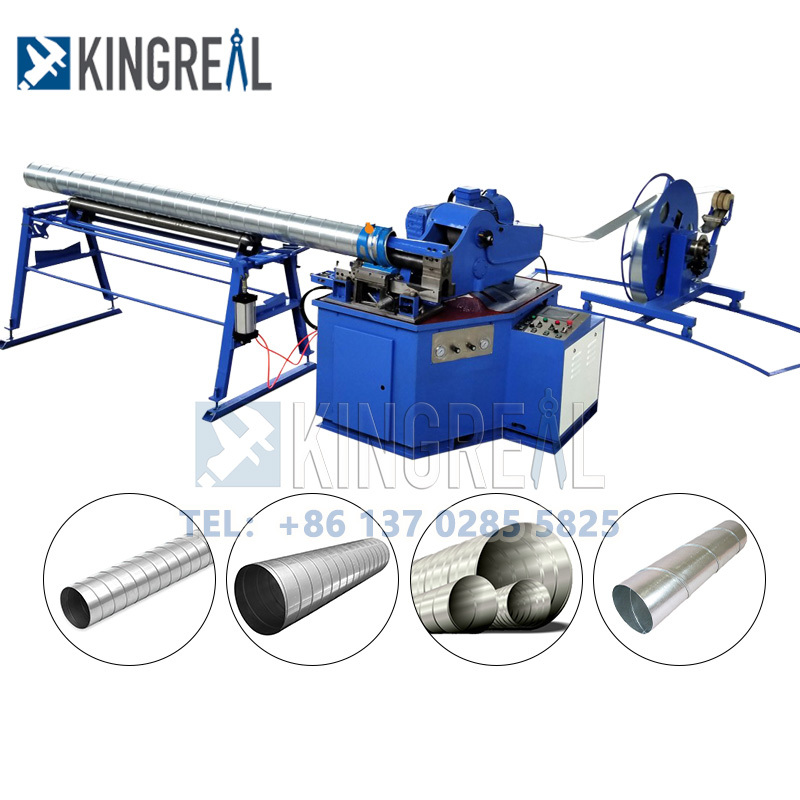

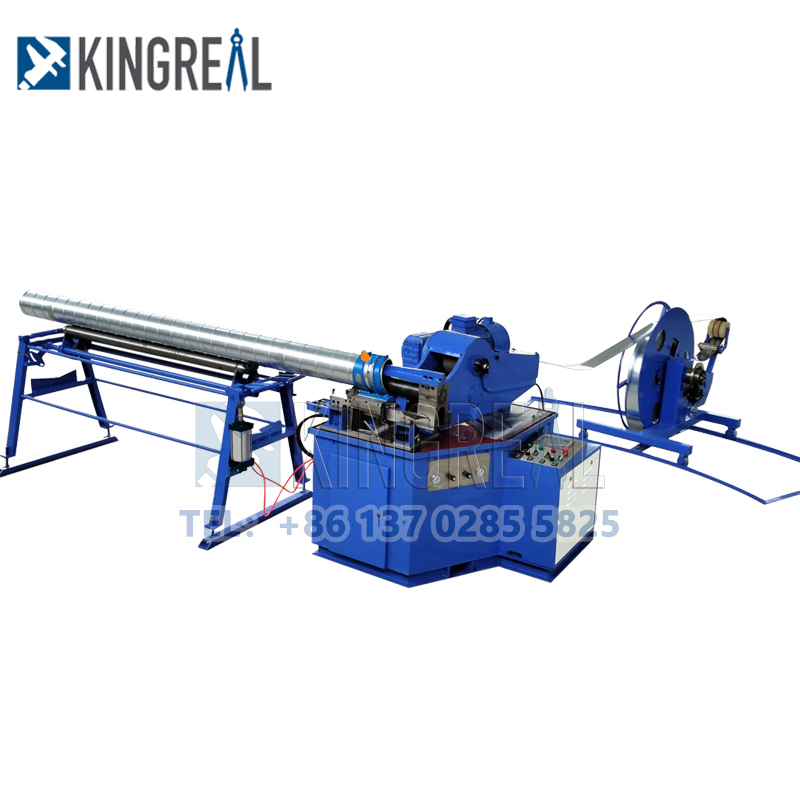

HVAC Spiral Duct Making Machine
Description Of Spiral Duct Forming Machine
KINGREAL CEILING MACHINERY HVAC round spiral duct making machine can automatically forming spiral round duct with different diameters and different lengths based on customers demand. Its working principle is to use duct molds to form spiral ducts, ensuring easy operation and accurate diameter formation.
KINGREAL CEILING MACHINERY HVAC round spiral duct making machine provide different types of forming mold with different types of cutting device to form hvac spiral duct. Each forming mold and cutting method has its own advantages. The spiral duct forming machine newly improved structure allows the pipe mold and the steel strip mold to be used on the same equipment at the same time, giving full play to the advantages of the two mold moldings.
Specification Of Spiral Duct Forming Machine
Alloy saw cutting | Roll shear cutting | |
Mold diameter | 100-1600mm | 100-1600mm |
Processing plate thickness | 0.5-1.2mm | 0.5-1.2mm |
Feed speed | 0-26m/min | 0-60m/min |
Weight | 1300kg | 2000kg |
Features Of HVAC Round Spiral Duct Making Machine
1. Diversified production
-Production range
The diameter range of spiral duct is large, ranging from 100-1600mm, and spiral ducts of different diameters and thicknesses can be processed.
-Cutting method
KINGREAL CEILING MACHINERY spiral duct forming machine also provides two different cutting methods, namely alloy saw cutting and rolling shear cutting. Both cutting methods use high-speed synchronous cutting system, but the specific cutting speed is different. HHVAC spiral duct manufacturers can flexibly choose the appropriate cutting method accoring to different production needs and budgets, so as to optimize production efficiency and reduce costs.


2. Reasonable design
- KINGREAL CEILING MACHINERY engineers designed a high-speed synchronous cutting system for the HVAC round spiral duct making machine. By precisely controlling the cutting speed and position, it ensures that each cutting process can achieve the best effect, greatly improving production efficiency.
- The production speed of spiral duct is adjustable. The operator only needs to enter the required parameters on the operating table, and the spiral duct forming machine will automatically adjust to the optimal production speed to quickly adapt to different production needs.
- To produce HVAC spiral ducts of different sizes, just change the mold. In order to meet the production needs of HVAC spiral ducts of different sizes, KINGREAL CEILING MACHINERY's HVAC Spiral Duct Making Machine is designed with a convenient mold replacement system. Users can easily produce ducts of different specifications by simply replacing the mold. KINGREAL CEILING MACHINERY provides multiple sets of molding molds, which customers can customize according to specific production needs.
- The spiral duct forming machine runs stably and the gear transmission noise is low. It not only improves the comfort of the working environment, but also reduces the impact on the surrounding environment, while reducing the failure rate and maintenance costs.
- KINGREAL CEILING MACHINERY HVAC round spiral duct making machine has a compact structure and a small footprint, helping manufacturers save land costs




3. Long service life
Machine body: KIGNREAL uses ductile iron to build the spiral duct body and base plate. The overall stability of the equipment is ensured. This high-quality material performs well when subjected to high-intensity workloads and can support long-term continuous production without deformation or wear. The stable body structure not only extends the service life of the spiral duct forming machine, but also reduces the downtime caused by equipment failure.
Blade: The cutting blade of the HVAC round spiral duct making machine is made of high-quality steel, with high hardness and corrosion resistance, which reduces the replacement frequency and maintenance cost, and extends the service life of the spiral duct forming machine.

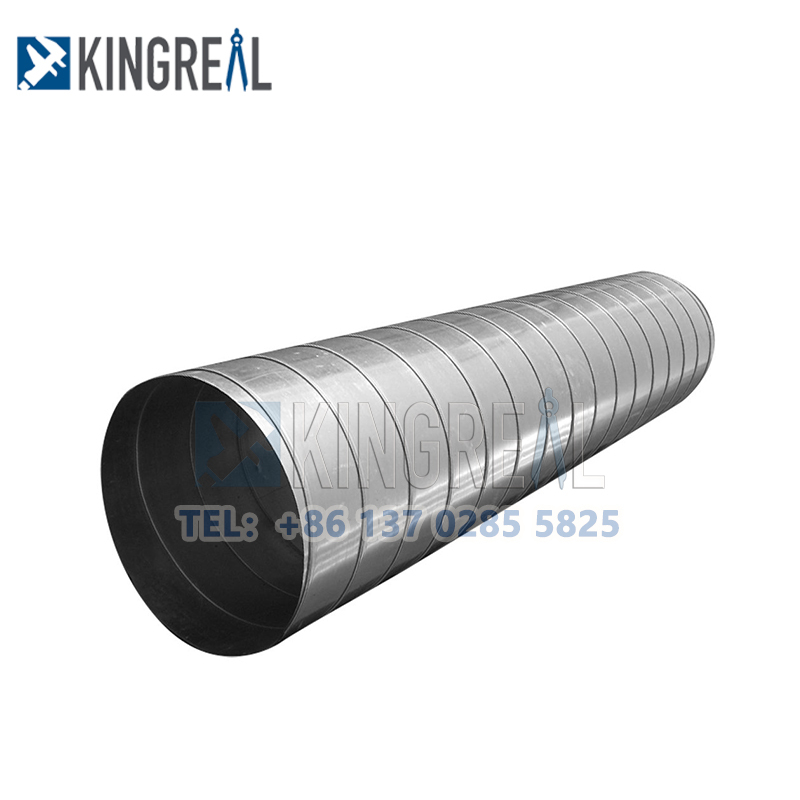

HVAC Spiral Duct Display
The HVAC round spiral ducts produced by KINGREAL CEILING MACHINERY spiral duct forming machine have the advantages of small air supply resistance, high strength, good sealing performance, fast processing and conversion speed of various pipe diameters, high production efficiency, stable performance, and wide length range. They are suitable for applications in filtration, ventilation, dust removal, environmental protection, construction and other industries.
KINGREAL CEILING MACHINERY Technical Team
KINGREAL CEILING MACHINERY has a high-quality professional technical team dedicated to providing customers with comprehensive solutions. From the drawing design of the HVAC round spiral duct making machine to the final manufacturing, KINGREAL CEILING MACHINERY's team has accumulated more than 20 years of rich experience, covering all aspects of design, production, installation and after-sales service, ensuring that every customer can enjoy excellent products and services.
After-sales Service
Local installation and operation guidance
KINGREAL CEILING MACHINERY provides professional local installation services to ensure that each spiral duct forming machine is properly installed and debugged in the customer's factory. KINGREAL CEILING MACHINERY's technical engineers will personally go to the site to be responsible for the installation and preliminary testing of the HVAC round spiral duct making machine to ensure that it is put into operation in the best condition. At the same time, engineers will also provide customers with detailed operation guidance to help operators quickly master the skills of using the spiral duct forming machine, thereby improving production efficiency.
Troubleshooting and Technical Support
During the operation of the HVAC round spiral duct making machine, if any faults or problems occur, KINGREAL CEILING MACHINERY's technical team will respond quickly and provide timely solutions. KINGREAL CEILING MACHINERY will not only perform fault diagnosis through the remote service system, but also arrange technical engineers to go to the customer's site for in-depth inspection and repair. KINGREAL CEILING MACHINERY's goal is to minimize downtime and ensure that the customer's production process is not affected.
Complete remote service system
In addition to localized after-sales service, KINGREAL CEILING MACHINERY has also established a complete remote service system. Customers can contact KINGREAL CEILING MACHINERY's technical support team by phone, email or online chat to get help at any time. KINGREAL CEILING MACHINERY's technical experts will provide professional advice and solutions to ensure that any problems encountered by customers during use can be quickly resolved.
Global localized service points
In order to better serve global customers, KINGREAL CEILING MACHINERY is actively building localized service points. These service points will be located in major markets so that faster and more efficient support can be provided when customers need it. KINGREAL CEILING MACHINERY is committed to shortening response time and improving customer satisfaction through localized services, so that every customer can feel our care and support.
