What is a sheet metal perforating machine?

2024-10-23 18:32

Video About Perforated Metal Machine



The perforated punching machine is a common metal sheet processing device. Its working principle involves using mechanical force to punch holes or raised shapes in metal sheets with a punch. This article provides a detailed introduction to perforated sheet machine.



Main Components of a Perforated Punching Machine




Machine Body: Comprises the base, column, mechanical arm, and hydraulic cylinder. The frame supports and stabilizes the entire machine, ensuring strong stability and rigidity. The slide is the main part for vertical movement, connected to the frame by sliding or rolling. The bed is a sturdy worktable that ensures stability during operation.



Drive Mechanism: Transmits power to the working components via mechanical, hydraulic, or pneumatic methods. The drive usually includes a motor, reducer, clutch, and gear system to provide the necessary power and force for movement.



Working Parts: Mainly consists of the punch, guide pillar, and pull rod.



Control System: Controls operation, stopping, and automatic adjustments via electrical or hydraulic means. It consists of electrical components, hydraulic parts, and computers to monitor and control operation parameters, ensuring accuracy and stability during punching.


 coil perforation line


Different Tons of Sheet Metal Punching Machine for Option




KINGREAL CEILING MACHINERY has been deeply involved in the metal processing machinery industry for more than 20 years and has a mature technical system. KINGREAL CEILING MACHINERY can customize suitable metal ceiling panel perforated punching line according to different metal plate perforation needs of customers. The following two sheet metal punching machines are common configuration models of metal ceiling panel punching lines:


perforated metal machinePerforation machine production line

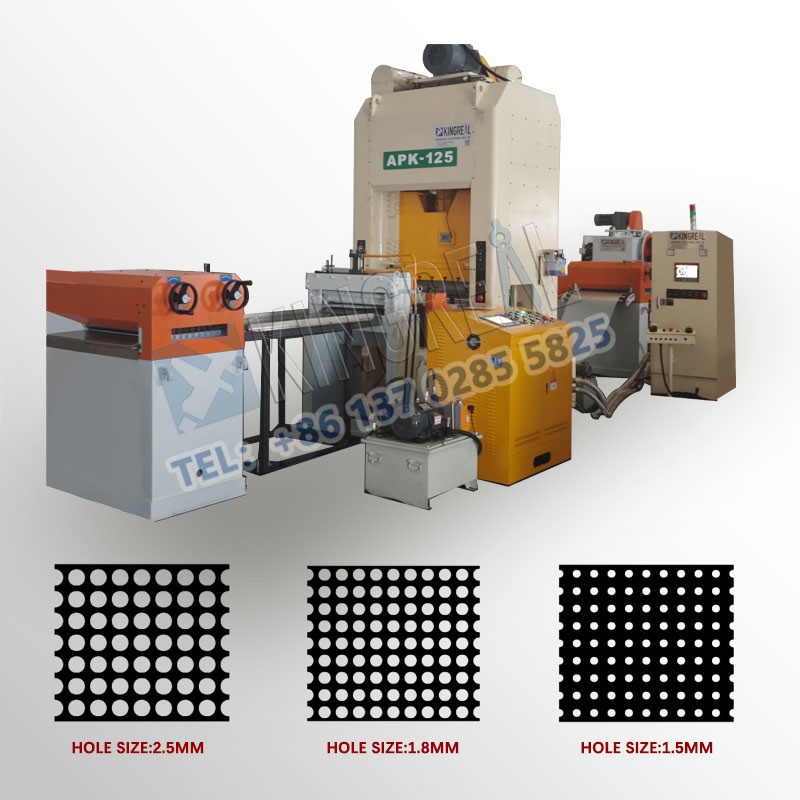

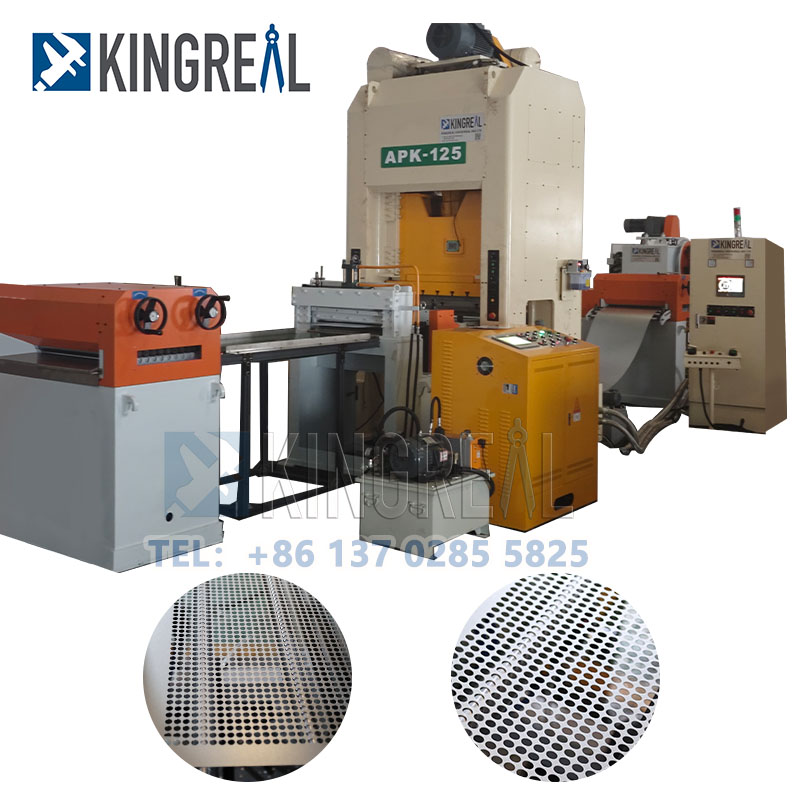

125 Ton Perforated Punching Machine

SPM: 150-180min
Max. Die Height: 400mm
Die Height Adjustment: 50mm

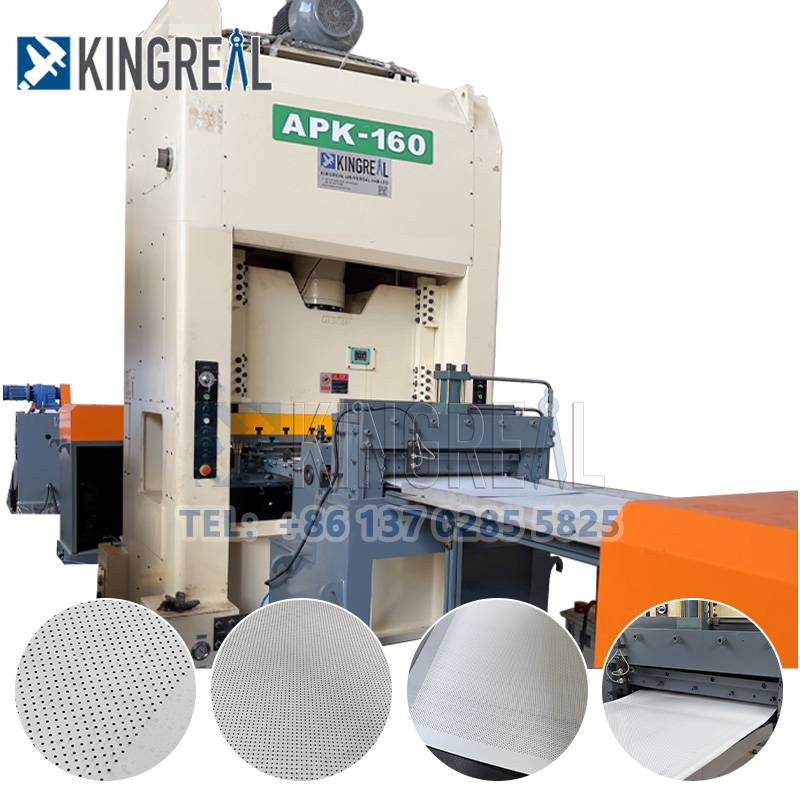

160 Ton Perforated Punching Machine

SPM: 160-220min
Max. Die Height: 400mm
Die Height Adjustment: 50mm



Advantages of Perforated Punching Machines




Perforated sheet machines offer advantages such as simplicity, high processing speed, quality holes, and low costs. Compared to traditional drilling and cutting methods, they enable mass production, enhance efficiency, and ensure consistency and precision of holes.

 coil perforation line


Application Areas of Punching Machines




Punching machines are widely used in automotive manufacturing, electronics, construction, and home appliance industries. In automotive manufacturing, they create holes in body panels for component installation; in electronics, they produce ventilation and connection holes in casings; and in construction, they make mesh and railings.


 perforated metal machine


Development Trends of Sheet Metal Perforating Machines




With increasing industrial automation, perforated sheet machines are continually evolving. Future trends include digitization, intelligence, and efficiency. By incorporating automated control systems, they can operate autonomously in production lines, improving efficiency and quality. Additionally, advancements in materials science will allow perforated punching machines to accommodate various processing needs.



In summary, as a crucial mechanical processing device, the perforated punching machine has broad applications and clear advantages. With ongoing industrial advancements, perforated sheet machines will continue to develop and innovate to meet changing market demands. They will play an important role in providing efficient and precise solutions across industries.



If you have any questions, feel free to contact KINGREAL CEILING MACHINERY!
