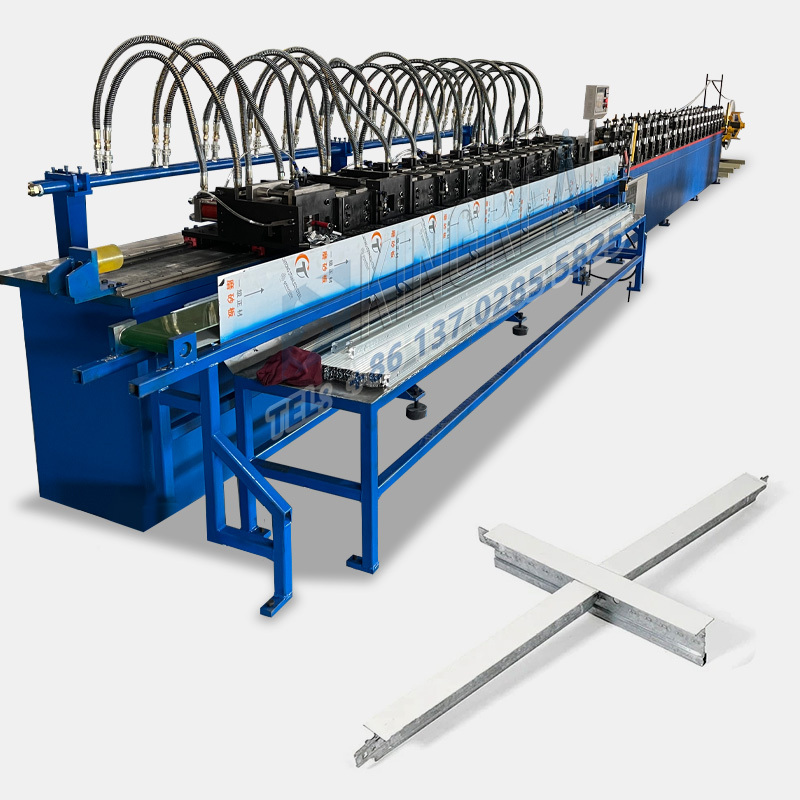

Automatic Tee Bar Grid Roll Forming Machine
KINGREAL CEILING MACHINERY Full Automatical T Bar Gird Roll Forming Machines are the most advanced technology from China which consist of 3 cold Roll Forming Machines to produce main t bar grid, cross drop ceiling t bar and wall angle profile. KINGREAL CEILING MACHINERY is one of the most professional roll forming machine manufacturers in China, if you have any requirements for producing a t bar grid, welcome to contact us!
- KINGREAL CEILING MACHINERY
- China
- 90 Days
- 9999
Details
Video About Automatic T Bar Ceiling Machine
T Grid Machine Successful Shipped to India
The following is a detailed introduction to this case:

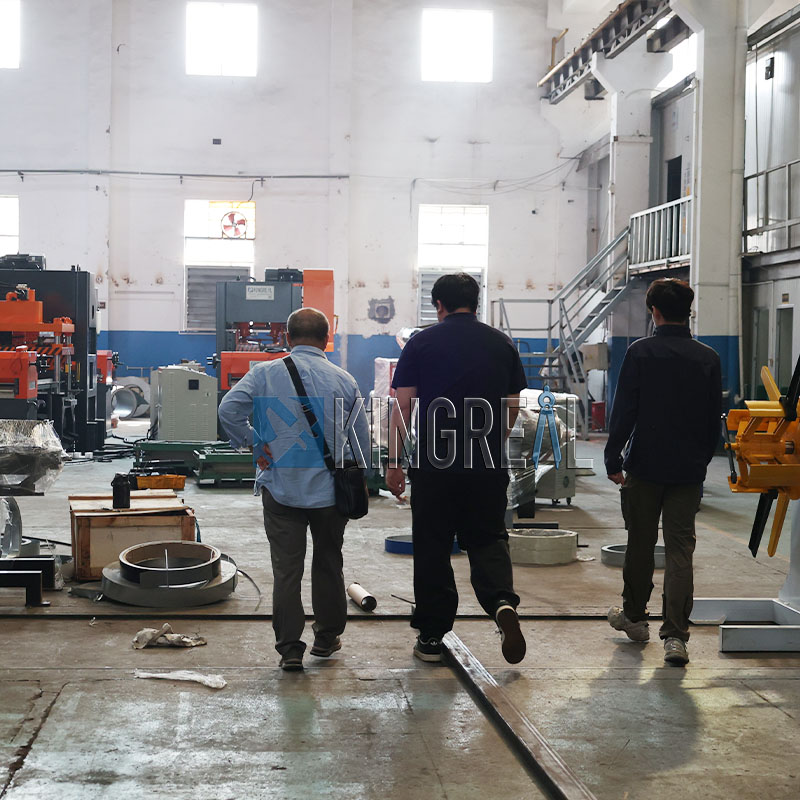

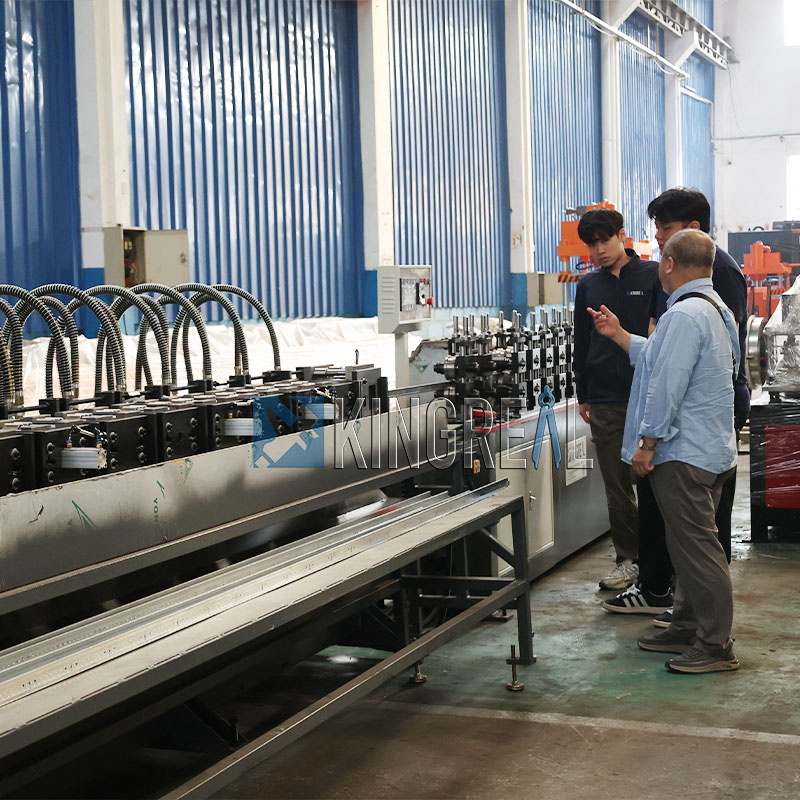

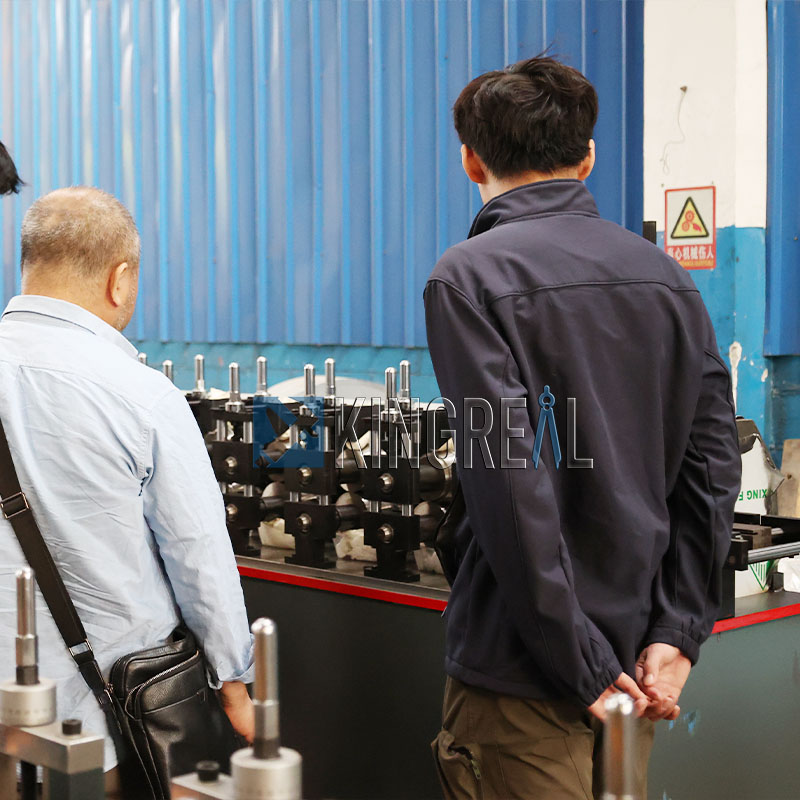

● Customer visit: After KINGREAL CEILING MACHINERY staff and customers communicated online for a period of time, they invited customers to KINGREAL CEILING MACHINERY factory for field visits. KINGREAL CEILING MACHINERY sent professionals to accompany customers to see the operation of the ceiling t bar machine throughout the process, and introduced the machine components and features to customers one by one.
● Customized project: After having a deeper understanding of the ceiling t bar machine, KINGREAL CEILING MACHINERY engineers and customers discussed the machine manufacturing plan in the conference room. Engineers will dig deep into customer needs based on the drawings and customize the final machine manufacturing plan.
● Machine manufacturing: In the ceiling t bar machine manufacturing process, KINGREAL CEILING MACHINERY will have personnel patrol and spot check to ensure that the manufacturing process is rigorous and serious.
● Shipping: When shipping, staff will record pictures and videos and synchronize them to customers.
● Offline installation: After the ceiling t grid machine arrives, KINGREAL CEILING MACHINERY will send professional engineers to the customer's factory for offline installation.
Description of Automatic Ceiling T Grid Machine
KINGREAL CEILING MACHINERY automatic Tee bar grid roll forming machine adopts the most advanced technology in China and consists of 3 cold roll forming machines for the production of main t bar grid, cross drop ceiling t bar and wall angle profile. KINGREAL CEILING MACHINERY automatic T bar roll forming machine can automatically form the steel strip into various sizes and lengths of T bar ceiling according to customer requirements. This process not only improves the production efficiency, but also ensures the consistency and high-quality appearance of the molded product.
As a professional supplier of ceiling manufacturing equipment, KINGREAL CEILING MACHINERY is committed to providing customers with complete ceiling system solutions.
Features of T Bar Roll Forming Machine

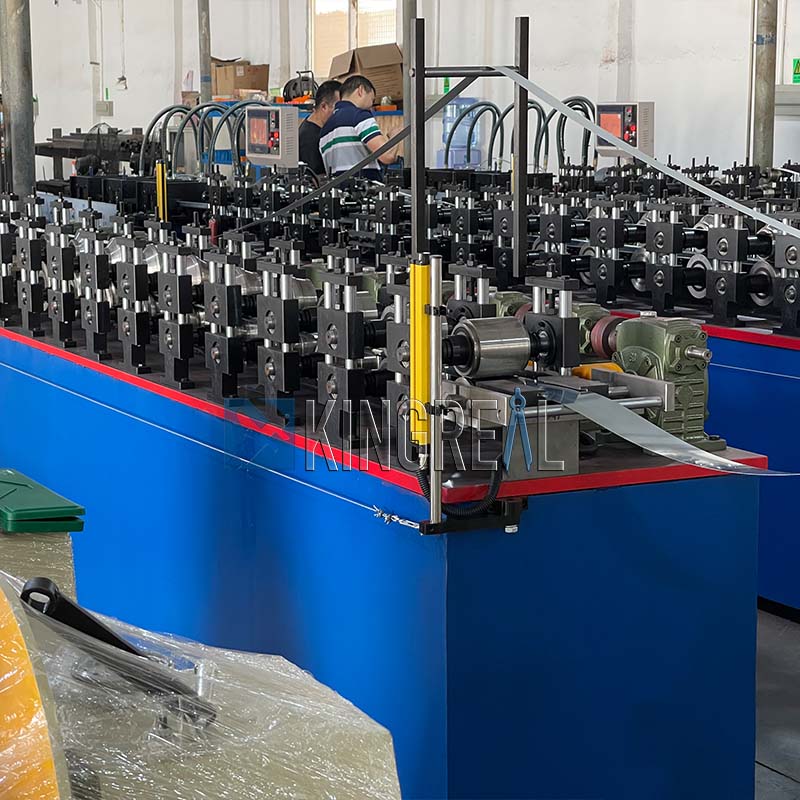

Efficient Punching System Most of the system is equipped with advanced automatic control, make whole cutting and punching process completed without human intervention. It is specially designed for high-speed production, can be finished in a short time a lot of cutting and punching, with functions of high precision cutting, punching, ensure the keel size, hole location accuracy. | ![]() |

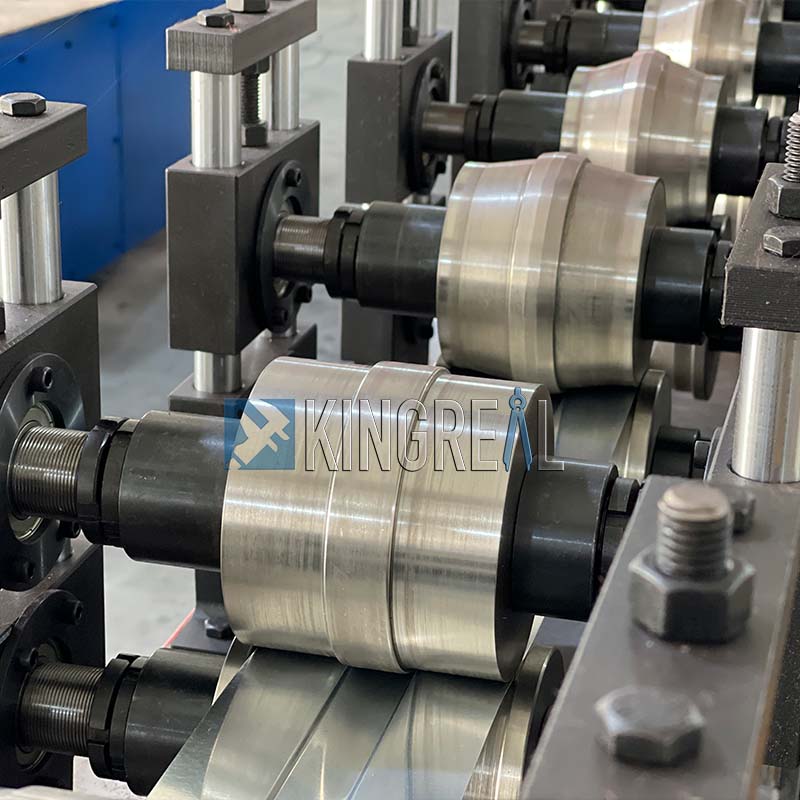

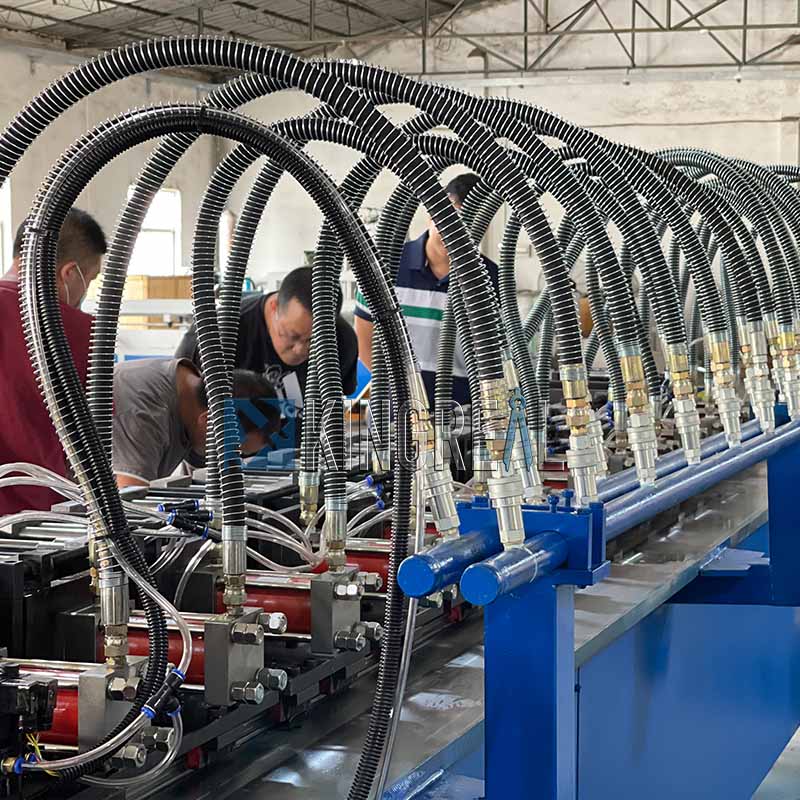

![]() | High Quality Components 1. The material of main shaft is 40Cr, finished after heat treatment and refine grinded; 2. Hydraulic system: the system has an unloading protection function, the hydraulic components use Taiwan Dazheng brand. 3. Electric system:Use frequency converter, centre auto control, use the fixed rule to adjust the length and automatic cut off. The air switch and contactor use Japan Fuji, reply uses Japan Izumi, the button uses French Schneider, other components use good quality imported production. |
Safety Design Safety protection:The installation of electric components is according to the regulations of China, KINGREAL CEILING MACHINERY supplies reliable earth contacting devices. There are emergency stop buttons on the punching side. The color of machine:The color of main equipment is according to the requirement. The alarming marks are sticking to the safety position which is dangerous for humans. | ![]() |
Technical Specs of Machine for Ceiling Grid
Production Process
Hydraulic Decoiler → Main Roll Forming → Hydraulic Punching and Cutting → Output
Product Composition Of Ceiling T Bar Machine
KINGREAL CEILING MACHINERY Full Automatical T Bar Grid Making Machine are the most advanced technology from China which consist of 3 cold Roll Forming Machines to produce Main Tee Grid, Cross Tee Grid, Wall Angle Profile.

Main Tee

Cross Tee

Wall Angle Profile
T Bar Grid Size for Your Reference
By using best materials to ensure highest strength with perfect surface quality. Please find below specifications KINGREAL CEILING MACHINERY normally produces:
Main Tee | H38*24mm, H32*24mm |
Cross Tee | H26*24mm, H24*23mm |
Angle | 22*22, 22*20MM |
Thickness | 0.20-0.40mm |
Full Solutions of Steel T Bar Production
KINGREAL CEILING MACHINERY has accumulated many successful cases of customized steel t bar roll forming machine. KINGREAL CEILING MACHINERY can provide full solutions for your steel t bar production.
More Information About Ceiling T Bar Machine
1. What are the advantages of ceiling t grid machine?
2. Ceiling t bar machine maintenance guide
3. How to use a t bar ceiling machine?
4. Local After-sales Service -- T Bar Ceiling Machine
Customer Visit
It is such a delight to have friends coming from afar. KINGREAL CEILING MACHINERY warmly welcomes customers to visit KINGREAL CEILING MACHINERY factory and communicate with us!
KINGREAL CEILING MACHINERY in Canton Fair
KINGREAL CEILING MACHINERY actively participates in domestic and foreign exhibitions and is committed to expanding market channels. By communicating with customers from different countries, KINGREAL CEILING MACHINERY has a deep understanding of the specific details of the market demand for ceiling t grid machines. This valuable information provides an important basis for KINGREAL CEILING MACHINERY in product innovation and design upgrades, enabling KINGREAL CEILING MACHINERY to develop ceiling t grid machines that better meet customer production needs.
