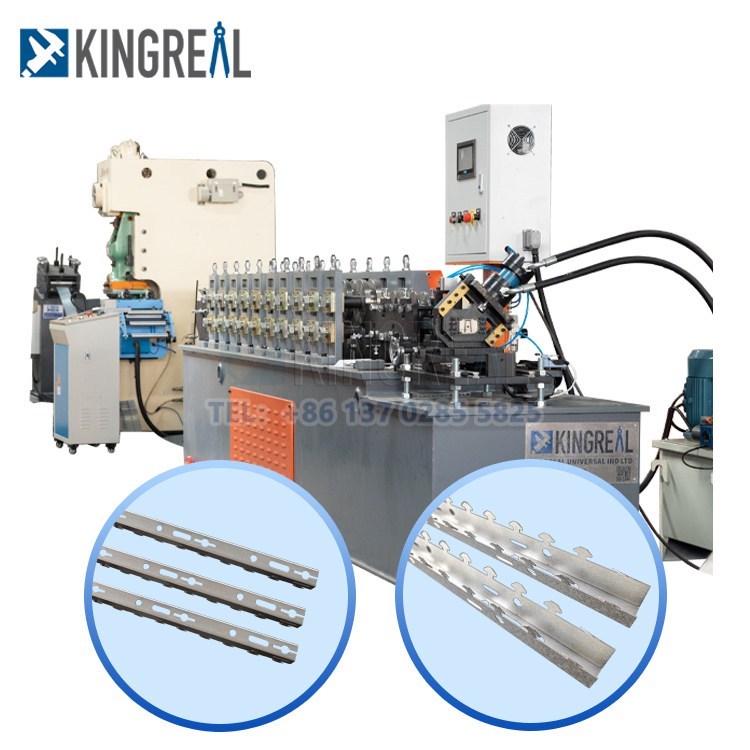

Linear Metal Ceiling Carrier Making Machine

KINGREAL CEILING MACHINERY Linear Metal ceiling Carrier Making Machine is designed for producing carriers for linear metal ceiling panels. KINGREAL CEILING MACHINERY can customize ceiling carrier production line to meet your needs, including baffle ceiling carrier, square suspended ceiling carrier and so on.

Details

Video Display About Metal Ceiling Carrier Machine



Description of Linear Metal ceiling Carrier Making Machine

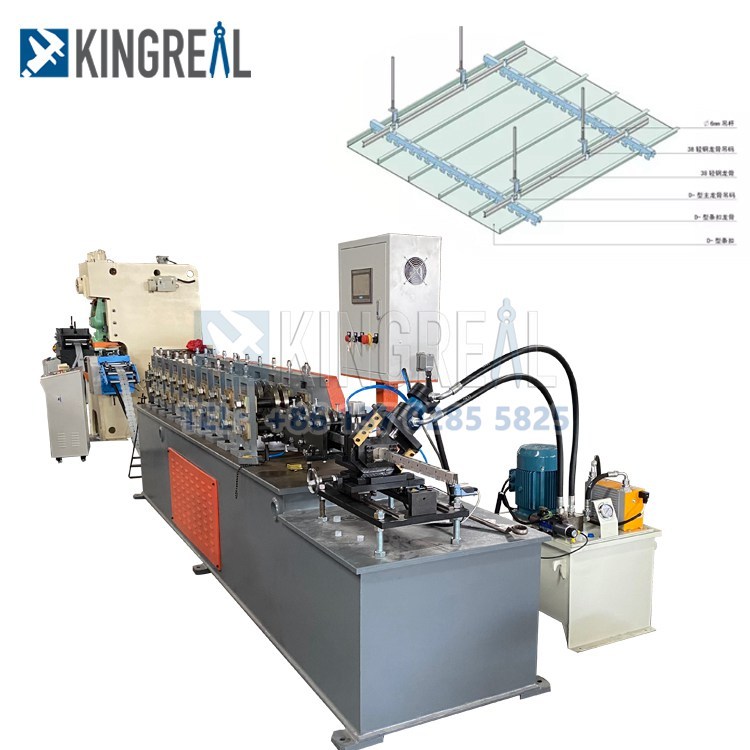

KINGREAL CEILING MACHINERY Linear Metal Ceiling Carrier Equipment can produce different shapes and different width linear ceiling panels and carriers of corresponding sizes, which used to installed the suspended linear ceiling.


KINGREAL CEILING MACHINERY can provide complete linear ceiling production solution. The shapes of linear ceiling can be G/V/H/C/S and etc.. The width of linear ceiling can be 100-300mm. If you have special production needs, please feel free to contact us!


Ceiling Carrier Equipment


KINGREAL CEILING MACHINERY Successful Projects


Metal Ceiling Carrier Machine

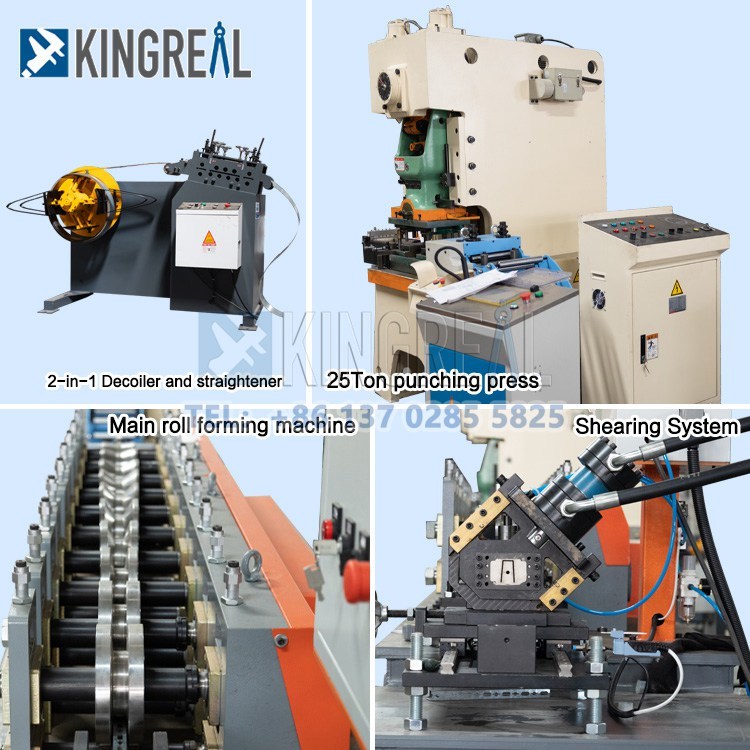

Main Components


2 in 1decoiler - straightener

             |

auto punching machine

             |

main roll forming machine

             |

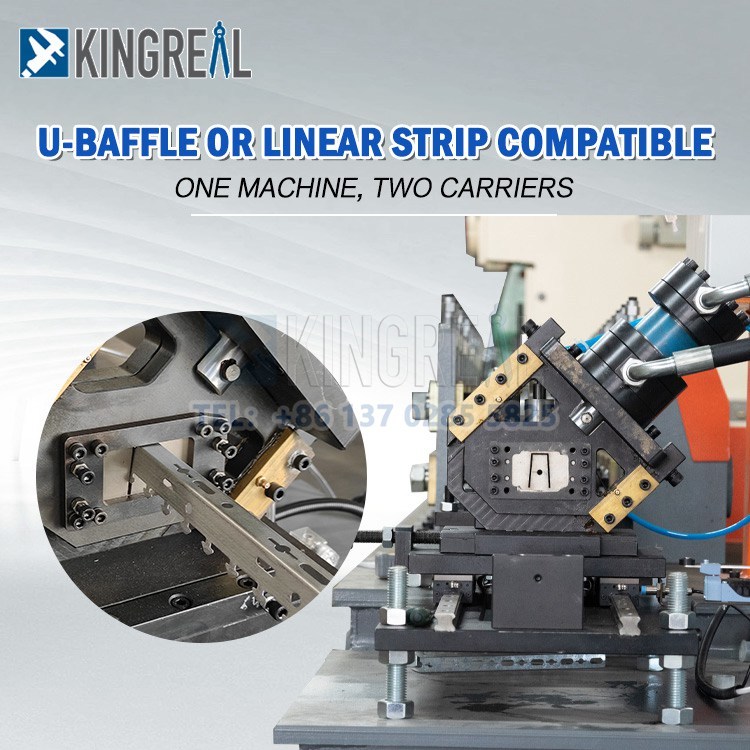

cutting station

             |

output table

             |

electrical control system


Ceiling Carrier production Line


Features of Linear Strip Ceiling Carrier Making Machine



1.Long Service Life

① The forming frame of linear metal ceiling carrier roll forming machine is welded using high strength channel steel, which has the main features of high strength and long service life.

② The molds of linear metal ceiling carrier roll forming machine are made of GCr15, quenching treatment, hardness: HRC 56-62 °C. And the material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment. High-strength, high-frequency roll forming operation can be ensured. With the characteristics of long lifetime and high-precision.
Ceiling Carrier Equipment
Metal Ceiling Carrier Machine




2.High Quality Components


KINGREAL CEILING MACHINERY linear metal strip ceiling roll forming machine comes standard with Siemens motor, Panasonic PLC, Panasonic inverter, Omron encoder. Ensuring precise operation of linear strip ceiling carrier roll forming production.



3.Automatic design


①KINGREAL CEILING MACHINERY linear metal strip ceiling carrier making machine adopts a two-in-one design of decoiler and straightener, which is used for coil sheet metal unwinding and straightening tasks. Combined decoiler and straightener not only save the land costs but also increase the production efficiency. To meet automatic production needs, Kingreal can offer hydraulic decoiler, and an optional trolley for fully automatic metal loading.

②Adopting PLC full-range intelligent control, and the automation program is high, safe and efficient. The staff do not have to go back and forth, they can control the overall situation simply by operating on the touch screen.
Ceiling Carrier production Line
Ceiling Carrier Equipment




4.Strong Compatibility

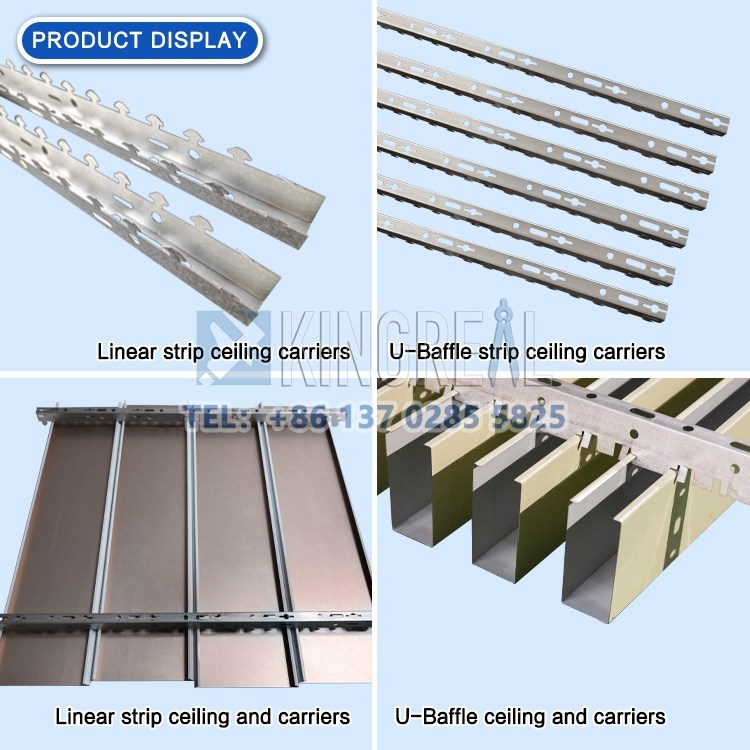

Different ceiling systems require different ceiling carriers. As a professional metal ceiling roll forming machine manufacturer, KINGREAL CEILING MACHINERY can provide diverse types of metal suspended ceiling carrier making machine. Including linear strip ceiling carrier, u shape baffle ceiling carrier, square suspended ceiling tiles carriers and so on. Kingreal metal suspended ceiling carrier production line can meet diverse metal ceiling carrier production needs. If you have any customized production needs, please feel free to contact us!


Complete Linear Strip Ceiling Production Solution


KINGREAL CEILING MACHINERY has over 20 years experience of design - production metal suspended ceiling roll forming machine. KINGREAL CEILING MACHINERY linear metal ceiling making machine can produce multiples types of strip ceiling, including:


1. U shape baffle ceiling roll forming machine (Auto width & height adjustable)

2. C-shape linear metal ceiling roll forming machine

3. S-shape linear metal ceiling roll forming machine

4. H-shape strip ceiling roll forming machine

5. G-shape strip ceiling roll forming machine

6. V-shape strip ceiling roll forming machine

7. Aluminum Louver Ceiling roll forming machine

8. Linear Strip Ceiling Carrier roll forming machine


Metal Ceiling Carrier Machine

In order to make the production process of ceiling manufacturers more efficient and simpler, KINGREAL CEILING MACHINERY can provide a complete linear metal ceiling production solutions, which is combined linear strip ceiling panel roll forming machine and linear strip ceiling carrier making machine. Combining 2 production line can not only greatly increase the production efficiency but also improve production consistency.


As market demand gradually expands, more and more u shape baffle ceiling manufacturers choose to purchase these u baffle ceiling panel and carrier production lines from KIGNREAL.


KINGREAL CEILING MACHINERY Factory


To integrate R&D, KINGREAL CEILING MACHINERY has established our own factory, located in Foshan, Guangdong. KINGREAL CEILING MACHINERY is looking forward to reaching long-term and stable relationships with customers around the world with KINGREAL CEILING MACHINERY professional capability and consistent level of service!


Ceiling Carrier production Line
