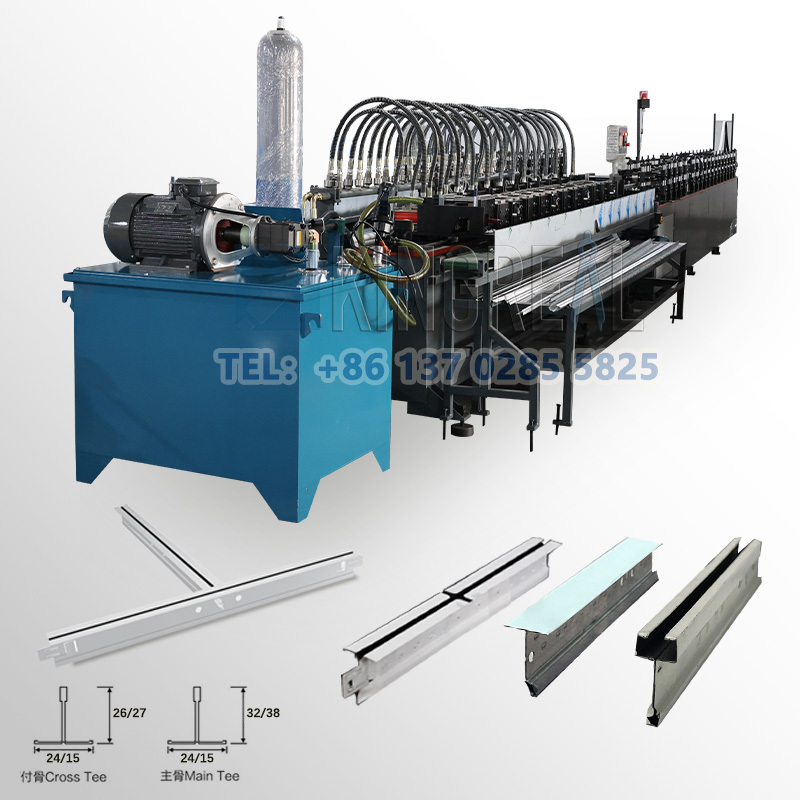

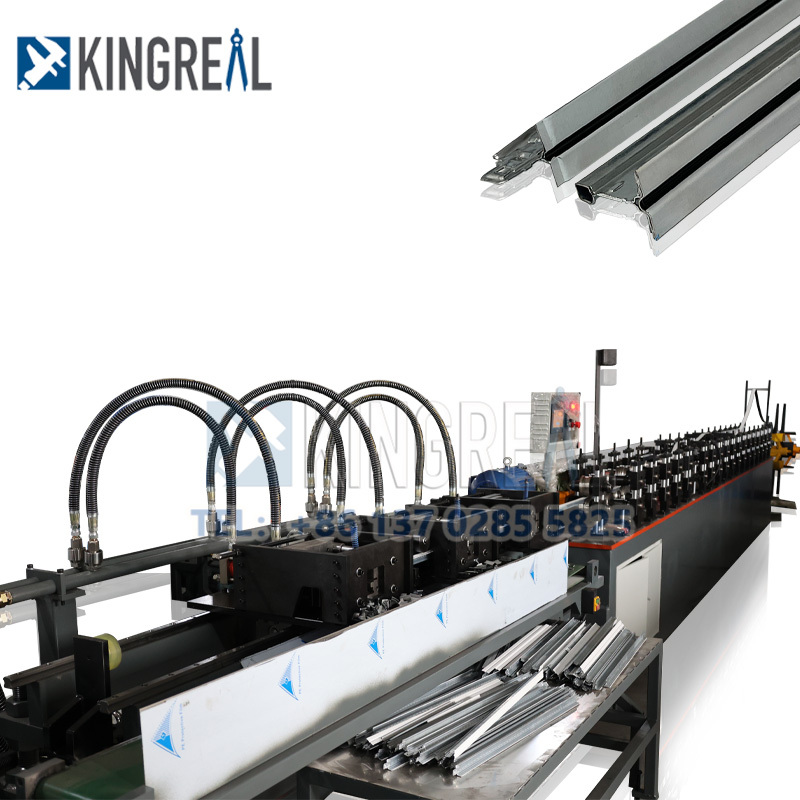

Black Line Ceiling T Bar Machine
KINGREAL CEILING MACHINERY black line ceiling t bar machine can produce different sizes of center black line ceiling t bar for supporting metal ceiling tiles, speed up to 30m/min.
- KINGREAL CEILING MACHINERY
- China
- 90 Days
- 9999
Details
Video About Black Line Ceiling T Bar Machine
Definition Of B
lack Line Ceiling T Grid Machine
KINGREAL CEILING MACHINERY black line ceiling t bar machine is a modern equipment that uses multiple process steps such as unwinding, forming, punching and discharging to accurately combine galvanized materials with rolling coating to form center black line ceiling t bar. The black line ceiling t grid machine is efficient and automated, and can produce main t or cross t according to the production needs of customers.
The main t is usually used to support the structure of the entire ceiling or partition, carrying the main load, while the cross t plays the role of auxiliary support, helping to distribute the load and enhance the stability of the overall structure. This design makes the center black line t bar play a vital role in the ceiling system, ensuring the safety and durability of the ceiling.
An innovation in the production process of the ceiling t bar black line is the use of a unique ink spraying technology. By lifting a bottle and filling the top with quick-drying ink, the center black line ceiling t grid machine automatically sprays during the forming process to ensure that the coating is uniform and dries quickly. The advantage of this design is that the finished product does not require an additional drying step after discharging, which significantly improves production efficiency and reduces waiting time.
In addition, the appearance design of the ceiling t bar black line has been carefully considered. The black coating not only enhances its aesthetics, but also makes it easier to adapt to various interior decoration styles. This visual appeal makes the center black line ceiling t bar a popular choice in modern interior design, suitable for a variety of occasions such as home, commercial and public spaces.
Workflow Of Black Line Ceiling T Grid Machine
Hydraulic Decoiler -- Main Roll Forming Machine -- Punching and Shearing Station -- Product Table

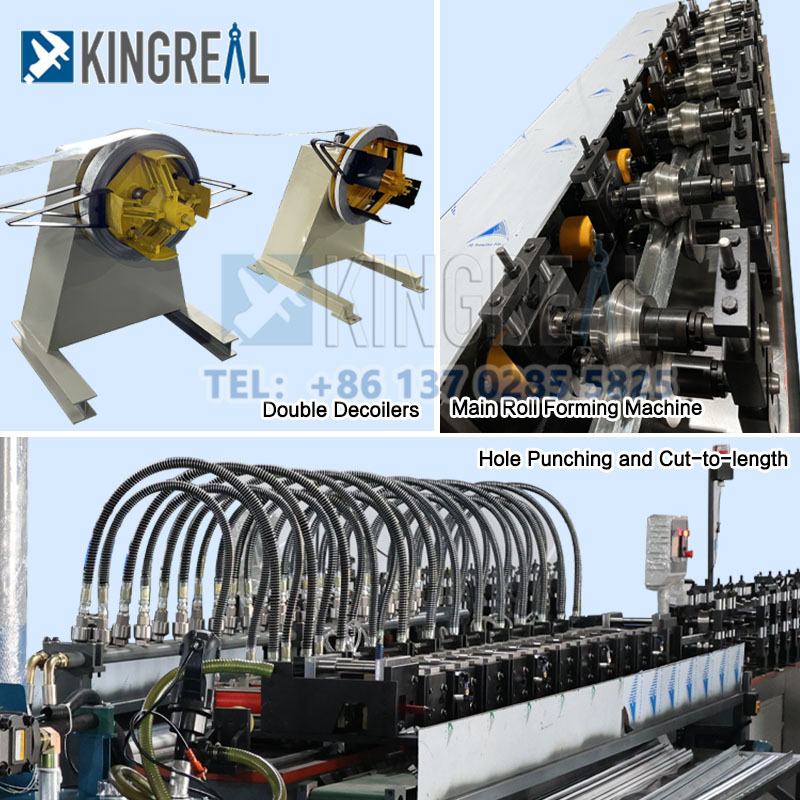

Main Components Of Center Black Line Ceiling T Grid Machine
Double decoilers
KINGREAL CEILING MACHINERY center black line ceiling t grid machine is equipped with two decoilers, which can feed materials at the same time. The first decoiler is dedicated to the feeding of galvanized materials. The decoiler is equipped with an automatic tension control system to ensure that the galvanized material remains stable during the feeding process, thereby achieving smooth and smooth feeding. This design effectively avoids slipping or twisting of the material during the feeding process, improving production efficiency and finished product quality.
The second decoiler is responsible for feeding the coating roll and is usually installed above the roll forming machine. The decoiler also has a tension control function to ensure that the roll coating maintains proper tension and position during the feeding process, so that it can be accurately aligned with the galvanized material. This dual feeding method ensures the perfect combination of the two materials during the forming process, thus forming a high-quality ceiling t bar black line.

Roll forming machine
The main roll forming machine is the core component of the center black line ceiling t grid machine. Its rollers are made of high-hardness, high-quality materials with excellent wear resistance and pressure resistance. These rollers are precisely arranged and designed to effectively form the galvanized material and roll coating, ensuring stable forming effects at high speeds.

Punching and shearing system

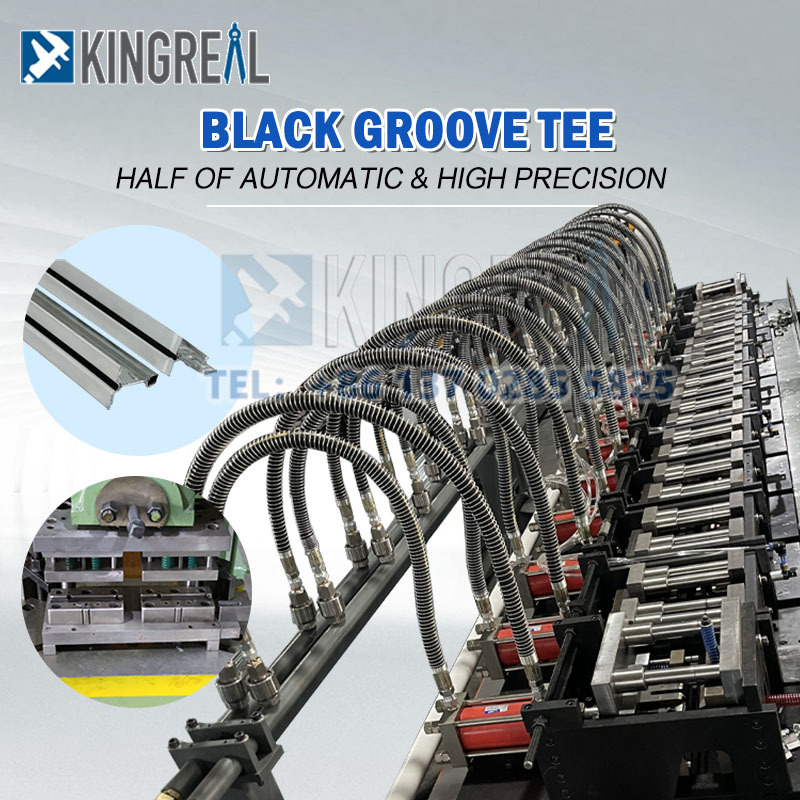

The punching and shearing system is an important part of the black line ceiling t grid machine. The design concept of chasing punching and chasing shearing is adopted, so that the punching and cutting processes can be completed in one step. The system has the characteristics of high precision, and can accurately punch out the required holes while forming, and cut the material into a preset length. This efficient integrated design reduces time waste in the production process and improves overall production efficiency, while ensuring the accuracy of the size and hole position of the finished product, meeting the market demand for high-quality products.

Discharging table
After punching and shearing, the ceiling t bar black line will fall directly onto the discharging table, which is convenient for subsequent manual packaging and stacking. The design of the discharging table has been carefully considered to ensure that the finished product is not damaged during the falling process and maintains a good appearance and quality. This reasonable discharging system improves work efficiency, facilitates subsequent packaging and delivery, and ensures that the center black line t bar can enter the market smoothly and quickly.

Advantages Of Center Black Line Ceiling T Grid Machine
● High speed
The production speed of this black line ceiling t grid machine is as high as 30 m/min, which is in a leading position among similar equipment. The efficient production capacity enables enterprises to respond quickly to market demand, shorten delivery cycles, and improve overall production efficiency. Such speed not only increases production, but also reduces the time cost in the production process, bringing greater economic benefits to enterprises.
● Can produce different types of ceiling t bar
A highlight of the KINGREAL CEILING MACHINERY black line ceiling t grid machine is its versatility. The production line can produce both flat ceiling t bar and center black line ceiling t bar at the same time, which can be achieved by simply replacing the rollers of the roll forming machine. This flexibility enables the center black line ceiling t grid machine to adapt to different market needs, meet diverse customer requirements, and reduce the cost of equipment investment for enterprises.
● Punching and shearing technology
This center black line ceiling t grid machine adopts the punching and shearing system, which allows the punching and cutting processes to be completed in the same step. This innovative design not only improves production efficiency, but also greatly improves the dimensional accuracy of the center black line ceiling t bar. The application of punching and shearing technology reduces multiple links in the traditional production process and reduces the need for manual intervention, thereby improving operational safety and consistency of the center black line ceiling t bar.
● Can produce different sizes of ceiling t bar
Another significant advantage is that the KINGREAL CEILING MACHINERY center black line ceiling t grid machine can produce ceiling t bar black line of different sizes in the same production line. By replacing the roller set and the cutting die, the operator can easily adjust the equipment settings to meet the size requirements of different projects. This flexibility allows the center black line ceiling t grid machine to switch quickly to adapt to different order requirements, thereby maximizing resource utilization.
● User-friendly operation interface
The black line ceiling t grid machine is equipped with a modern PLC control system with a friendly operation interface, which is easy for operators to set up and monitor. Operators can flexibly adjust multiple parameters according to production needs, such as production speed, cutting length and material type. The real-time data feedback function enables users to understand the operating status of the center black line ceiling t grid machine in a timely manner, quickly troubleshoot and maintain, and greatly improve the efficiency and safety of the center black line ceiling t grid machine.




Application Fields Of Ceiling T Bar
Ceiling t bar are widely used in the following major fields due to their excellent load-bearing capacity and structural stability:
Ceiling system
Ceiling t grids are the core component of the ceiling system, providing stable support and capable of carrying various ceiling materials such as gypsum board and mineral wool board, ensuring the beauty and functionality of the ceiling.
Partition wall
In offices and commercial spaces, ceiling t grids are used to construct partition walls, flexibly divide space, realize the layout of different functional areas, and meet the needs of modern offices.
Commercial buildings
Ceiling t bar are widely used in commercial places such as shopping malls, supermarkets and exhibition halls to support ceiling decoration and lighting systems, enhance the overall visual effect and customer experience.
Residential decoration
In residential decoration, ceiling t grids are used for the installation of ceilings and partitions, providing a comfortable and beautiful living environment to meet the different living needs of the family.
Other Featured Ceiling T Bar Machines
The flat ceiling t bar machine is mainly used to produce flat ceiling t grids, which are widely used in ceiling and partition systems. The design of this machine focuses on the production of flat structures, and can efficiently process galvanized steel strips into standard ceiling t grids. Flat ceiling t bar machines usually have high-speed production capacity and can meet the needs of large-scale production. Its operation interface is simple and clear, which is convenient for operators to get started quickly. In addition, the flat ceiling t bar machine has high molding accuracy, ensuring that the size and shape of the flat ceiling t bar meet the standards, and is suitable for various interior decoration occasions.

Wall Angle Machine
The wall angle machine is a device specially used for processing wall angle, mainly used for supporting the edges and corners of buildings. This wall angle machine can quickly and accurately process the material into the required angle and shape to ensure the stability of the structure. The wall angle machine is usually equipped with an efficient punching and shearing system, which can complete cutting and punching in the same process, improving production efficiency. Its flexible adjustment function allows users to quickly adjust the angle and size according to different construction needs, adapting to various architectural design schemes.

Silhouette Ceiling T Grid Machine
The silhouette ceiling t grid machine is a device used to produce Silhouette ceiling t grids with a stereoscopic groove structure, which is widely used in the decoration and functional design of modern buildings. This silhouette ceiling t grid machine can form complex groove textures on the surface of the material, which not only enhances the beauty of the ceiling t grid, but also improves its structural stability. Silhouette ceiling t grid machines usually use advanced molding technology and high-precision molds to make the depth and shape of the processed grooves uniform. This type of equipment is suitable for high-end decoration projects that require visual effects and functionality, such as commercial spaces and high-end residences.

Different Types Of Ceiling T Bar

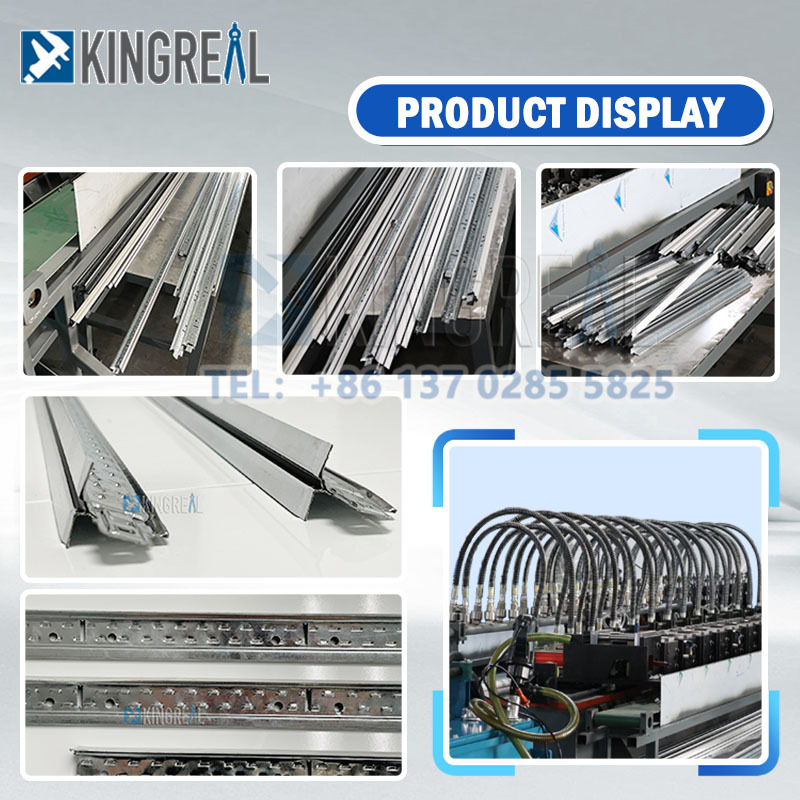

1. Center black line t bar
Center black line t bar are favored by the market for their unique black surface treatment. This ceiling t grid is not only more modern visually and suitable for various interior decoration styles, but also has good corrosion resistance and pressure resistance. Ceiling t bar black line are usually made of galvanized steel strips, combining beauty and practicality, and are often used in high-end office spaces, commercial places and residential decoration.



2. Flat ceiling t grid
Flat ceiling t grids are the most common ceiling t bar, mainly used for the support of suspended ceilings and partition systems. This flat ceiling t bar has a simple structure and is usually made of galvanized steel strips. It is light and easy to install. The design of the flat ceiling t grids ensures its stability and load-bearing capacity, which is very suitable for large-area suspended ceiling projects. Due to its standardized production process, flat ceiling t grids can be mass-produced at a lower cost to meet the needs of various construction projects.



3. FUT ceiling t bar
FUT ceiling t bar is a new type of ceiling t grid specially designed to provide stronger load-bearing capacity and structural stability. FUT ceiling t bar usually adopts high-strength materials, can support greater loads, and is suitable for ceilings and partition systems that require extra strength. Its design takes into account air circulation and sound insulation, and is suitable for commercial buildings, conference rooms and other spaces that require good acoustic performance. The flexibility and durability of FUT ceiling t grid make it an ideal choice for high-demand environments.



4. Silhouette ceiling t grid
Silhouette ceiling t bar is a ceiling t grid with a special groove design, which is widely used in the decorative and functional needs of modern buildings. The grooves on its surface not only increase the aesthetics, but also enhance the structural stability of the ceiling t bar. Silhouette ceiling t grid is suitable for high-end commercial spaces, art exhibition halls, and interior design projects that require unique visual effects. By using silhouette ceiling t grid, designers can create a more layered and three-dimensional space effect, and enhance the overall decoration grade.
