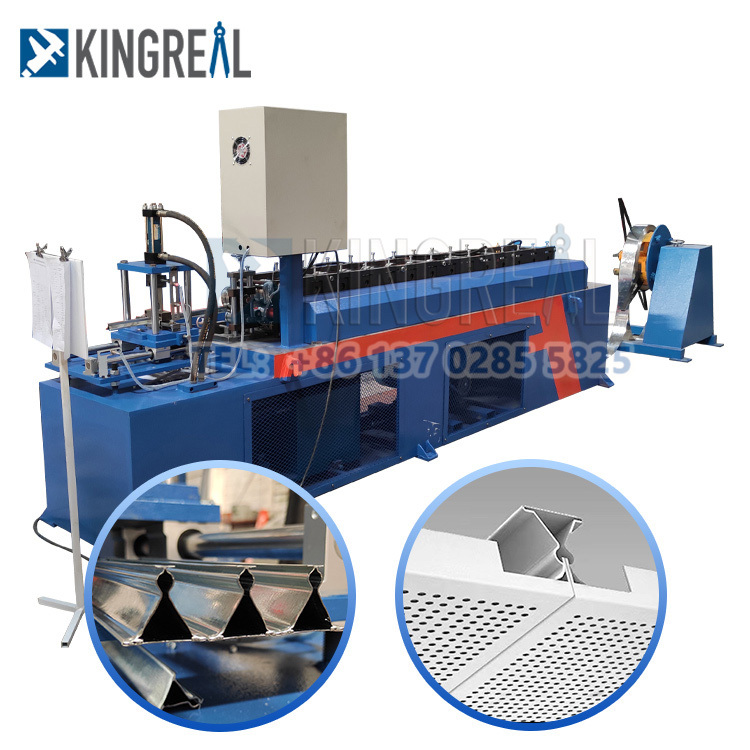

Spring Tee CLIP IN Carrier Roll Forming Machine

KINGREAL CEILING MACHINERY Spring Tee Metal Ceiling Machine is one of the most popular types of carriers for clip-in metal ceiling tiles. The triangle carrier machine has the characteristics of precision rolling forming and high speed following shear. The spring tee roll forming machine can produce different sizes of metal ceiling tiles, such as 600x600mm, 600x1200mm, 300x1200mm, etc. Through the metal ceiling tile production line, these two machines can manufacture complete metal ceiling tile systems.

Metal ceiling production line and triangle grid machine are the most commonly used machines in the building materials industry, and KINGREAL CEILING MACHINERY can customize them according to customer needs.

1. Matching with Clip-in Metal Ceiling Tiles      KINGREAL CEILING MACHINERY Spring Tee Carriers Making Machine is one of the most popular types of carriers for Clip-in Metal Ceiling Tiles. This production line is featured with precision roll forming and high-speed follow shearing.      Main components of the line: Decoiler, Main roll forming machine, hydraulic follow shearing station and electrical control system.
	2.Strong adaptability      The Spring Tee Making Machine is compatible with stainless steel or galvanized steel as raw material. It can produce carriers for different sizes of metal ceiling tiles such as 300x300mm, 300x600mm, 450x450mm, 600x600mm etc. With a metal ceiling tiles production line, these 2 machines can manufacture a complete metal ceiling tiles system.
3. High quality components     KINGREAL CEILING MACHINERY uses quality servo motors from famous brand YASKAWA to build KINGREAL CEILING MACHINERY's hydraulic follow shearing station, which provides an unbelivable 100m/min production speed maximum. All specifications can be easily set in the touch screen operating system with multilingual support. Instructions from operator will be transformed by a quality PLC control system.     Product length can be set, too. The follow shearing station will cut products precisely to length with its durable cutting blade which is made of CR12MoV mold steel, the same raw material for rollers to ensure precision roll forming and qualified final products.

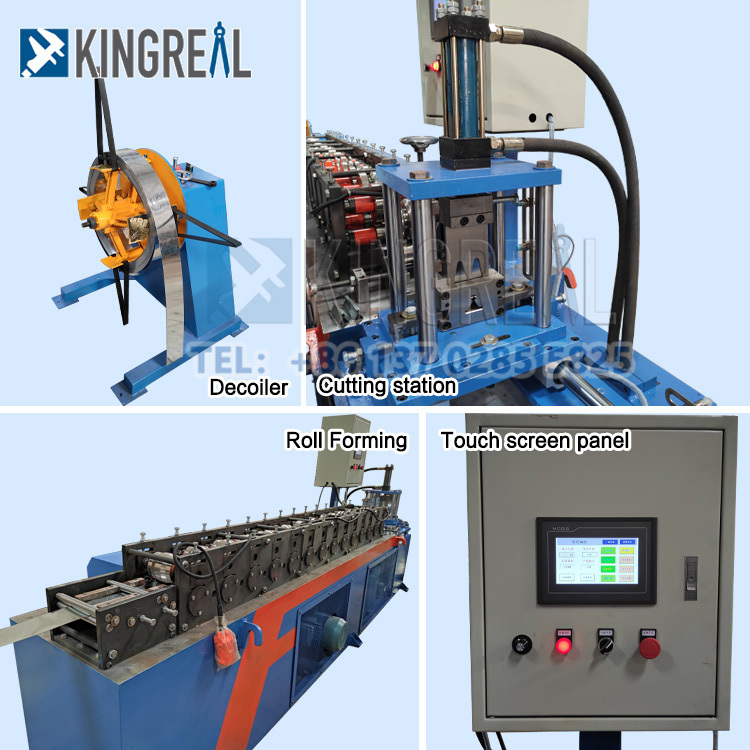

Hydraulic Decoiler -- Main Roll Forming Machine -- Hydraullic Cutting Station -- Output Table

High-quality rollers

The rollers of KINGREAL CEILING MACHINERY spring tee carrier making machines are carefully manufactured with high-quality and extremely hard raw materials to ensure excellent forming results. Through the application of this high-quality material, the rollers can not only provide stable performance, but also show excellent durability under high-intensity use conditions, greatly reducing the chance of damage. Reduce maintenance costs for customers and improve production efficiency.

Intelligent control panel

KINGREAL CEILING MACHINERY is equipped with an advanced intelligent control panel for each machinetriangle tee carrier machine, on which users can easily set various parameters such as length, output, etc. This user-friendly design makes operation simple and intuitive, suitable for users of different experience levels. In addition, there is an emergency stop switch on the control panel, which can quickly cut off the power supply in an emergency, thereby ensuring the safety of the operator and enhancing the overall safety and reliability of the spring tee carrier making machine.

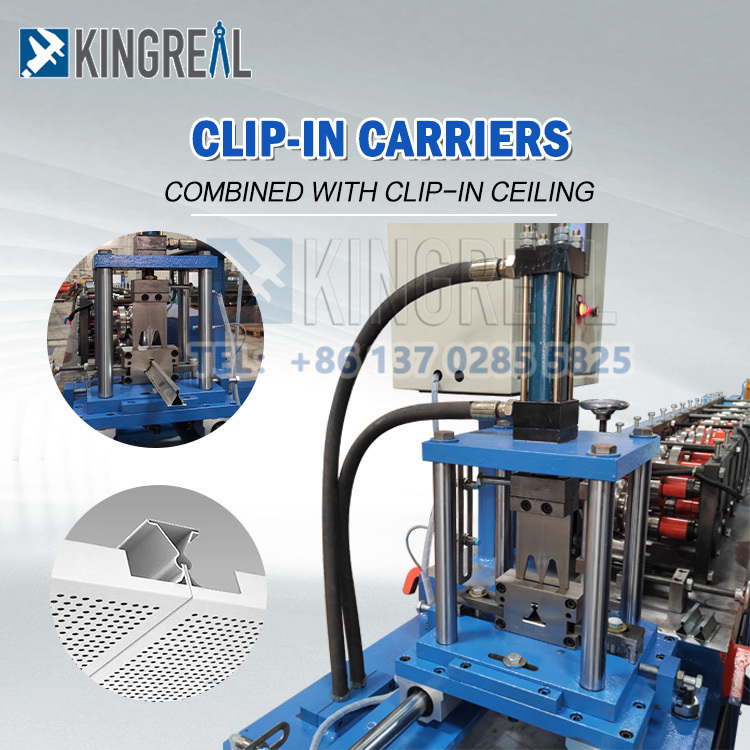

Shearing station

KINGREAL CEILING MACHINERY's shearing station is carefully designed to accurately cut the triangular tee according to the customer's preset length, ensuring that the accuracy of each cut can meet high standards and perfectly match the set parameters. It not only improves the quality of the products, but also greatly satisfies the flexibility of customers under different production needs.

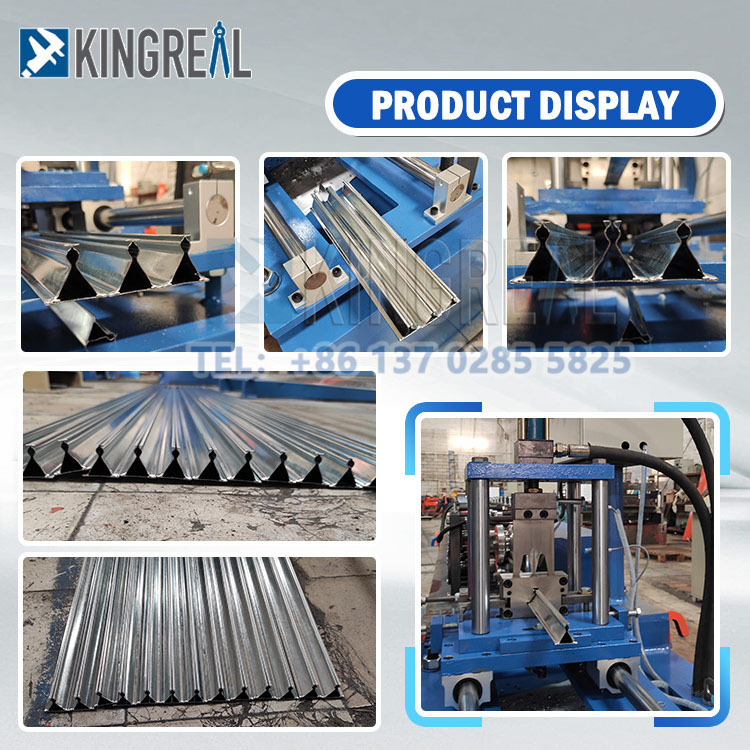

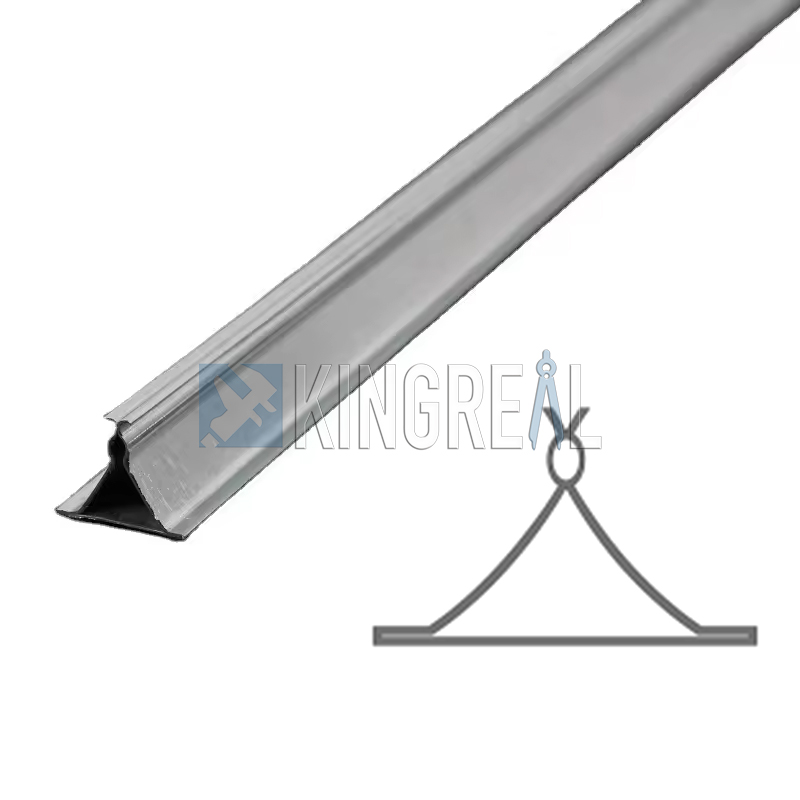

KINGREAL CEILING MACHINERY's spring tee carrier making machine can accurately manufacture high-precision triangular tees according to the specific production requirements of customers. Its design is equipped with extremely hard rollers and high-quality shearing stations. These key components together ensure the accuracy and consistency of triangular tees during the production process. In addition, the flexibility of the spring tee carrier making machine enables it to produce a variety of different sizes of carriers according to customer needs to meet the specific requirements of various projects. Whether it is large-scale construction or small-scale renovation, KINGREAL CEILING MACHINERY's spring tee carrier making machine can provide suitable solutions to ensure that customers achieve the best effects and satisfactory results in construction.

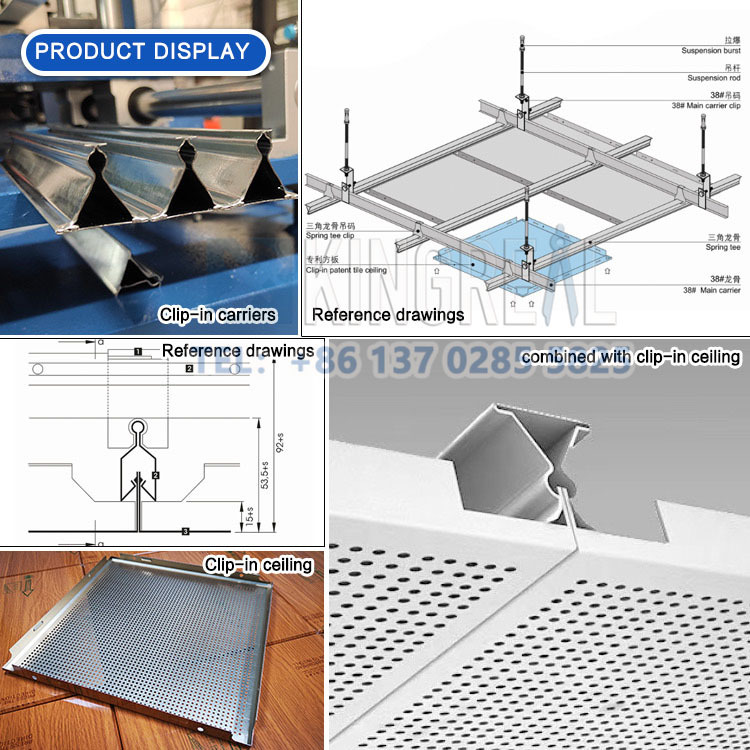

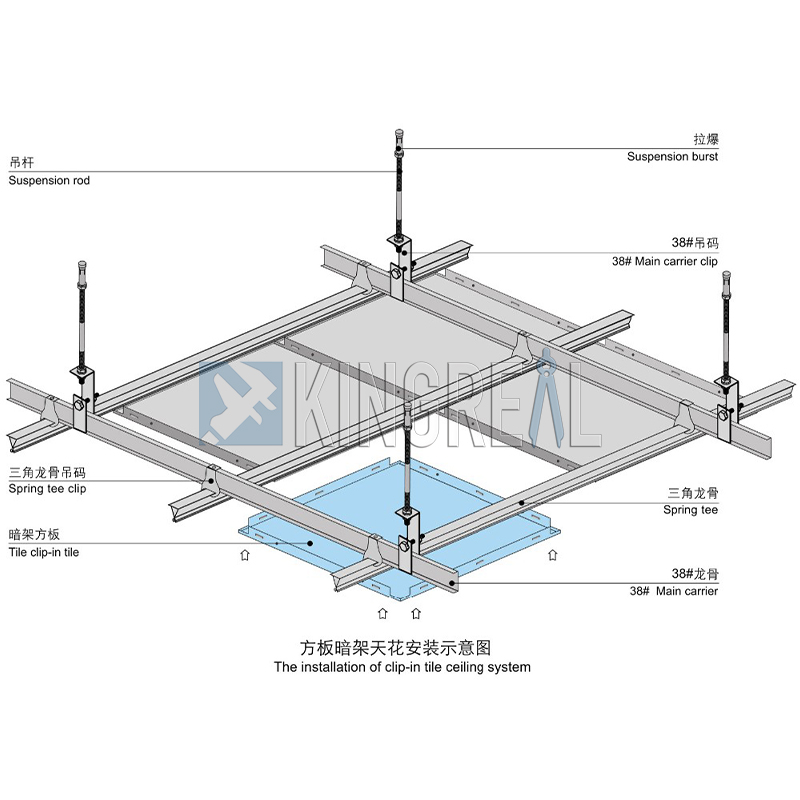

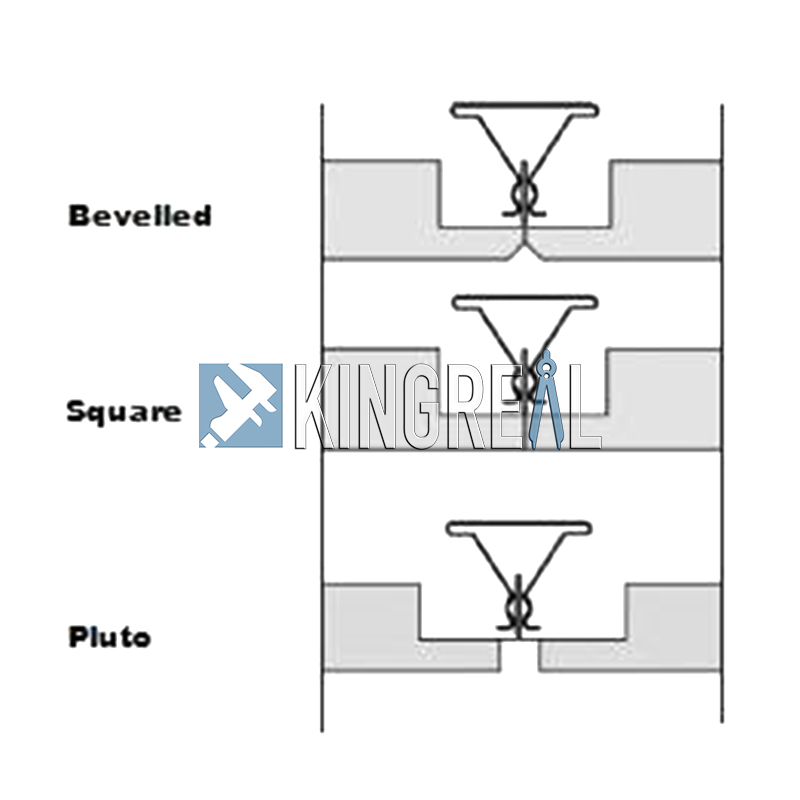

The finished products produced by KINGREAL CEILING MACHINERY's spring tee carrier making machine can be perfectly matched with the clip-in metal ceiling to form a complete concealed ceiling system. This combination not only provides a strong suspension capacity to ensure the stability and strength of the ceiling structure, but also makes the ceiling area look neater and more beautiful through the concealed keel design. The installation process is simple and fast, greatly reducing construction time and labor costs.

At the same time, the concealed design also makes subsequent repairs and maintenance more convenient. Users can easily perform daily maintenance without worrying about affecting the overall beauty and functionality, thereby improving the user experience and satisfaction.

(1) Metal Ceiling Tile Production Line
(2) T Bar Roll Forming Machine
(3) U Baffle Ceiling Production Line
(4) Open Cell Ceiling Making Machine
(5) Linear Strip Ceiling Production Line

(1) Are you a manufacturer?

Yes, KINGREAL CEILING MACHINERY  is a professional sheet metal processing machines manufacturer, KINGREAL CEILING MACHINERY is an OEM.

KINGREAL CEILING MACHINERY has been focusing on the field of machine manufacturing for more than 20 years.

(2) How to visit your factory?

There are 2 ways: either by plane or by train to Foshan/Guangzhou port. KINGREAL CEILING MACHINERY will pick you up at a plane/train station, and then we can go together.

(3) What's your Warranty ？

12 months except for human error, during which all parts damaged because of quality problems will be changed for free.

Parts that are out of warranty will be provided at factory price.

(4) What's your delivery Time ？

Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.

KINGREAL CEILING MACHINERY is not only  integrating R&D, has our own technical team and factory, but also has many years of experience in the design and manufacture of Ceiling T Bar Making Machine. KINGREAL CEILING MACHINERY has successfully customized Ceiling T Bar Making Machines to meet the needs of customers in many countries.

KINGREAL CEILING MACHINERY has established a localized technical support team in Indonesia, Brazil, Saudi Arabia, Canada, India etc.. Localized service points in other countries are also in progress.

To integrate R&D, KINGREAL CEILING MACHINERY has established our own factory, located in Foshan, Guangdong. In addition to maintaining close contact online, many of KINGREAL CEILING MACHINERY's customers also choose to visit KINGREAL CEILING MACHINERY factory to observe the production of machines and communicate with us face to face. KINGREAL CEILING MACHINERY is looking forward to reaching long-term and stable relationships with customers around the world with KINGREAL CEILING MACHINERY's professional capability and consistent level of service！
